Re: Docking package (plus examples) [message #22642 is a reply to message #22510]

Mon, 03 August 2009 10:43

tojocky
Messages: 607
Registered: April 2008
Location: UK

Contributor

Hello All,
Very interesting project.. by I thing that have a little bag.
index.php?t=getfile&id=1866&private=0

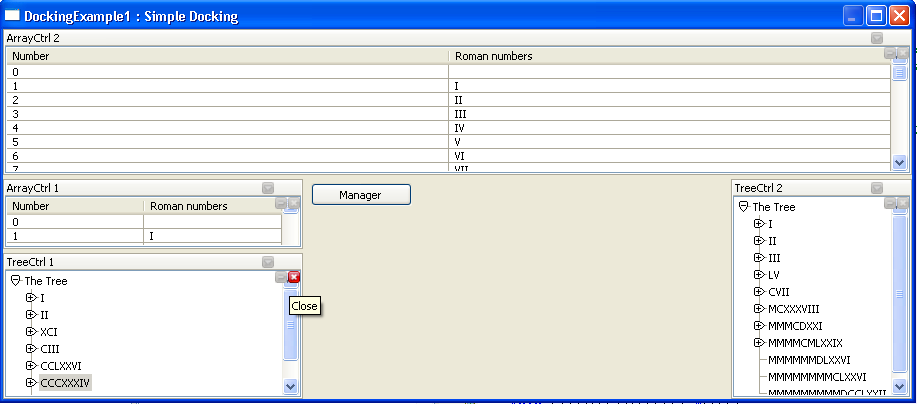

This bug i produced on win32 windows xp os with the latest svn repository. When I unmark and after then mark Windows Menu button from Docking window Manager form, The buttons of the docking windows was positioned wrong.

Attachment: docking_bug.PNG
(Size: 29.83KB, Downloaded 1078 times)

[Updated on: Mon, 03 August 2009 10:53]

Report message to a moderator

Re: Docking package (plus examples) [message #22935 is a reply to message #22642]

Sun, 30 August 2009 19:07

Didier
Messages: 690
Registered: November 2008
Location: France

Contributor

Hi,

I have the latest svn version and there are two Docking pacakges:
one uppdev and one in bazaar.
The one in Bazaar works, the other one has unresolved conflicts and therefore does not compile.

Which one should be used ?

Report message to a moderator

Re: Docking package (plus examples) [message #22945 is a reply to message #22935]

Tue, 01 September 2009 12:57

koldo
Messages: 3398
Registered: August 2008

Senior Veteran

Hello Didier

As far as I know in Bazaar there are the "stable" versions of packages submitted by the Upp community.

Therefore the right package to use would be the one in Bazaar.

Best regards
Koldo

Best regards
Iñaki

Report message to a moderator

Re: Docking package (plus examples) [message #22946 is a reply to message #13581]

Tue, 01 September 2009 12:59

koldo
Messages: 3398
Registered: August 2008

Senior Veteran

Hello James Thomas

Here I enclose you a translation to spanish.

Best regards
Koldo

Attachment: Docking.t
(Size: 3.20KB, Downloaded 305 times)

Best regards
Iñaki

Report message to a moderator

Re: Docking package (plus examples) [message #22947 is a reply to message #22946]

Tue, 01 September 2009 20:44

Didier
Messages: 690
Registered: November 2008
Location: France

Contributor

Hi Koldo,

Thanks !

Report message to a moderator

Re: Docking package (plus examples) [message #23179 is a reply to message #22642]

Wed, 23 September 2009 13:38

tojocky
Messages: 607
Registered: April 2008
Location: UK

Contributor

I see that this bug is not corrected.

It is persist in ubuntu 9.04 too!

tojocky wrote on Mon, 03 August 2009 11:43

Hello All,
Very interesting project.. by I thing that have a little bag.
index.php?t=getfile&id=1866&private=0

Report message to a moderator

Re: Docking package (plus examples) [message #23299 is a reply to message #23179]

Wed, 07 October 2009 18:55

mrjt
Messages: 705
Registered: March 2007
Location: London

Contributor

tojocky wrote on Wed, 23 September 2009 12:38

I see that this bug is not corrected.

It is persist in ubuntu 9.04 too!

tojocky wrote on Mon, 03 August 2009 11:43

Hello All,
Very interesting project.. by I thing that have a little bag.
index.php?t=getfile&id=1866&private=0

Fixed. It was actually caused by hiding the buttons then showing them agan.

I haven't merged the translation files yet.

Report message to a moderator

Re: Docking package (plus examples) [message #23524 is a reply to message #23299]

Tue, 27 October 2009 11:22

andrei_natanael
Messages: 262
Registered: January 2009

Experienced Member

The un-docked window doesn't get docked back, it doesn't get docking hints shown. That happen on Gnome 2.28 with Gnome effects (not compiz), Ubuntu 9.10.

[Updated on: Tue, 27 October 2009 11:22]

Report message to a moderator

Re: Docking package (plus examples) [message #23661 is a reply to message #13581]

Wed, 11 November 2009 13:22

softcoder
Messages: 3
Registered: October 2009

Junior Member

At first: Thank you for this great cool thing!
But I think I've found a bug concerning styles in docking (I'm using WinXP).

To see what I mean, perform the following steps:
- Open DockingExample2 as project in UPP so you can compile it etc.
- Add this function (which is basing on BlueBar):

void DockingExample::ChangeStyle()
{
	TabCtrl::Style& ctrlTabBarStyle = DockTabBar::StyleDefault().Write();
	ctrlTabBarStyle.Standard();
	for(int i = 0; i < 4; i++)
	{
		ctrlTabBarStyle.text_color[i] = White();
	}
}

- In DockingExample::DockingExample() replace

button <<= THISBACK(OnUserGuide);

button <<= THISBACK(ChangeStyle);

- Compile and execute the program.
- Look at the tabs (TreeCtrl 1 and 2) at the left bottom of the window. The font color is black as it should be.
- Pull one of the tabs out of the window so it becomes an additional floating window.
- Drag'n'drop the floating window where it was before.
- Now push the "User Guide" button -> font doesn't become white although it should become white.
- Pull out the tab again and drop it again to its old place -> font is white.

My current workaround (or even the best possible bugfix?) is to add the following line directly before Refresh() in DockCont::GroupRefresh():

tabbar.SetStyle(tabbar.GetAlign(), DockTabBar::StyleDefault());

This problem even occurs in UPP1679 (the newest version availabe here, but mainly using a much older one for some reasons).

Now the question: Is the problem sitting in front of my screen or is that really a bug? If it's a bug, is it a good solution?

TIA

softcoder

Report message to a moderator

Re: Docking package (plus examples) [message #23663 is a reply to message #23661]

Wed, 11 November 2009 18:23

mrjt
Messages: 705
Registered: March 2007
Location: London

Contributor

The problem is that TabBar requires a different style for each orientation. These are generated on demand and you have to make sure you modify the correct one.

The Docking tabs use bottom alignment, so this should work:

void DockingExample::ChangeStyle()
{
	TabCtrl::Style& ctrlTabBarStyle = DockTabBar::StyleBottom().Write();
	ctrlTabBarStyle.Standard(); // Is this necessary?
	for(int i = 0; i < 4; i++)
	{
		ctrlTabBarStyle.text_color[i] = White();
	}
}

(untested though)

I'm suprised your solution works actually. This code:

tabbar.SetStyle(tabbar.GetAlign(), DockTabBar::StyleDefault());

is applying the style for top-aligned tabs to a bottom aligned TabBar. I would expect the tabs to be the wrong way up.

Report message to a moderator

Re: Docking package (plus examples) [message #23966 is a reply to message #23663]

Sat, 12 December 2009 19:44

mdelfede
Messages: 1308
Registered: September 2007

Ultimate Contributor

Hi,

I'm testing your docking package, really impressive Smile

I have just a small question : I'd need some sort of tabbed docking, but without having a dockable container... I mean, I'd need to tabify-untabify some windows inside a FIXED container, which shouldn't be dockable. When last tab is undocked it should stay empty in-place waiting for pages to be eventually re-tabified.
The docking bar shouldn't be present, either, just the tabs.
Is it possible ?

Another nice thing would be the ability to lock/unlock some parts or the whole interface.

Ciao

Max

Report message to a moderator

Re: Docking package (plus examples) [message #23971 is a reply to message #23966]

Sun, 13 December 2009 10:33

Didier
Messages: 690
Registered: November 2008
Location: France

Contributor

Hi,

Try TabCtrl: tab management without docking facility.
I'm not it's what you need but it's simple and works well, you can also put controls in the tab to do whatever you want

Here is a screen shot of where you can see the different possibilities

Attachment: TabsExample.jpg
(Size: 80.75KB, Downloaded 285 times)

Report message to a moderator

Re: Docking package (plus examples) [message #23973 is a reply to message #23971]

Sun, 13 December 2009 10:56

mdelfede
Messages: 1308
Registered: September 2007

Ultimate Contributor

Hi Didier,

That's not exactly what I meant, but it's indeed what I'm using Smile

I'll wait to introduce docking in my app later on.
What I wanted to do was the ability to open more application files, show them inside a tabbed view and have the ability to undock each "job" to have it on a separate window, if needed.... handy to look, for example, at 2 jobs at once.
Just a little comfort more when copy/paste between different jobs whithout having to switch between them with the tabs.
I like also the autohide function, for page selection, for example, but I'll wait to introduce it later, too. I think I'll have to extend a bit the docking package, but no time now.

Thank you for answer Smile

Ciao

Massimo

Report message to a moderator

Re: Docking package (plus examples) [message #23998 is a reply to message #23973]

Wed, 16 December 2009 13:36

mrjt
Messages: 705
Registered: March 2007
Location: London

Contributor

I think everything you need is in the TabBar package, and you can add docking later. It's much more suited to a document tab system than TabCtrl is.

Just make a TopWindow derived document viewing window with a TabBar frame and add the callback behaviour. You may only need to use WhenClose and WhenAction, the others are there to support complex behaviour.

Unfortunately the Autohide behaviour is missing, I'm not sure why. Possibly I forgot to add it but it can also cause some layout problems so maybe it's left out for that reason. The DockTabBar class in the Docking package implements it and it's not much code so you could add it youself to a derived class.

If you want to overload the right-click menu you must create a derived class and overload ContextMenu.

There is a lot of additional stuff you can do with it if you want to (custom icons and Display, groups, key/value behaviour and stacking to name a few) but out-of-the box it should fit your requiredments fairly well. Let me know if you need some assistance, there isn't any documentation at the moment.

James

Report message to a moderator

Re: Docking package (plus examples) [message #24030 is a reply to message #23998]

Sat, 19 December 2009 23:06

mdelfede
Messages: 1308
Registered: September 2007

Ultimate Contributor

Hi mrjt,

thank you for suggestions, I' already using tabctrl, but I'll try to add docking/autohide later on, when app will be finished.

Ciao

Max

Report message to a moderator
