[bug] Moved UI components on different systems [message #40613]

Fri, 23 August 2013 11:52

crydev
Messages: 151
Registered: October 2012
Location: Netherlands

Experienced Member

Hello,

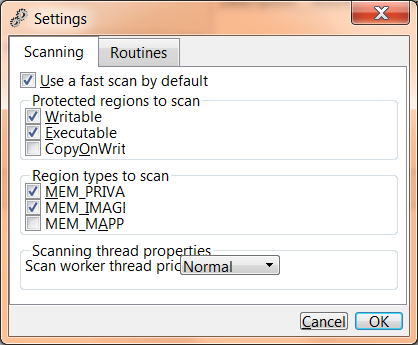

When distributing my application over different systems I encountered weird behavior on some. On a Windows 7 x64 machine of a friend the UI looks like this:

index.php?t=getfile&id=4294&private=0

I tried different positioning calls:

RightPos/LeftPos + BottomPos/TopPos;
HSizePos + BottomPos/TopPos.

I tried HSizePos on all controls because I noticed different behavior on controls that used it. But unfortunately changing all did not have the desired effect.

Why does the UI change like this over different systems? I think it is a rare occasion but what could be the cause of this problem?

Thanks, crydev

Attachment: IMG_23082013_111756.png
(Size: 27.11KB, Downloaded 737 times)

Report message to a moderator

Re: [bug] Moved UI components on different systems [message #40614 is a reply to message #40613]

Fri, 23 August 2013 12:57

dolik.rce
Messages: 1796
Registered: August 2008
Location: Czech Republic

Ultimate Contributor

Hi crydev,

Various systems have various font and DPI settings. U++ tries to compensate for these differences if you use the "zoomed" positions e.g. LeftPosZ() etc. This can solve some problems, but in other cases it can cause problems of it's own.

Best regards,
Honza

PS: When using Layout designer the zoomed positions are used by default.

[Updated on: Fri, 23 August 2013 12:59]

Report message to a moderator

Re: [bug] Moved UI components on different systems [message #40624 is a reply to message #40613]

Fri, 23 August 2013 20:33

crydev
Messages: 151
Registered: October 2012
Location: Netherlands

Experienced Member

That makes sense, going to change some of the controls to see whether it makes a difference!

Thanks for the answer Honza Smile
