DropList Items Text highlight area height [message #62055]

Wed, 16 September 2026 16:31

lmonda
Messages: 11
Registered: March 2025
Location: USA

Promising Member

Hello

I am working with a U++ project ( Upp version 17490), that recently migrated to newer hardware that uses touchscreen.

It is difficult to make a droplist selection using finger on a std Droplist as the text highlight area in the droplist Text items are very small.

Is there a way to increase the text selection rectangle height for a droplist control?

In the attached image, how to increase the blue rectangle height to like a button height so it is easy to select?

Thank You
lmonda

Attachment: DropList.png
(Size: 30.28KB, Downloaded 90 times)

Report message to a moderator

Re: DropList Items Text highlight area height [message #62056 is a reply to message #62055]

Wed, 16 September 2026 18:38

Oblivion
Messages: 1284
Registered: August 2007

Senior Contributor

Hi lmonda,

Yes, you can change the height. Even independently, per-line:

#include <CtrlLib/CtrlLib.h>

using namespace Upp;

struct MyApp : TopWindow  {
	DropList list;
	MyApp()
	{
		Sizeable().Zoomable().CenterScreen().SetRect(0, 0, 400, 400);
		Add(list.HCenterPos(300).VCenterPos());

		for(int i = 0; i < 5; i++)
			list.Add(i).SetLineCy(i, GetStdFontCy() * max(i, 1));
		list.GoBegin();

	}
};

GUI_APP_MAIN
{
	MyApp().Run();
}

Best regards,
Oblivion

Github page: https://github.com/ismail-yilmaz
Bobcat the terminal emulator: https://github.com/ismail-yilmaz/Bobcat
TerminalCtrl package https://github.com/ismail-yilmaz/Terminal

Report message to a moderator

Re: DropList Items Text highlight area height [message #62058 is a reply to message #62056]

Thu, 17 September 2026 18:22

lmonda
Messages: 11
Registered: March 2025
Location: USA

Promising Member

Hi Oblivion

Thanks, that is super helpful in using native controls. I am able to adjust the selection height.

Now In some cases, we have custom drop list that was extended from upp drop list. In these controls we override the Display like this -

struct DropListFontDisplay : Display {

   virtual void Paint(Draw& w, const Rect& r, const Value& q, Color ink,
                      Color paper, dword style) const
   {
       //Font fnt = StdFont(16).Bold();
       Color dropbackColor = Color(153,187,255);
       String txt = q;
       w.DrawRect(r, dropbackColor/*SColorFace*/);
       w.DrawText(r.left + 2, r.top + (r.Height() - GetTextSize(txt, _GFont).cy) / 2,
                  txt, _GFont, ink);
   }
};

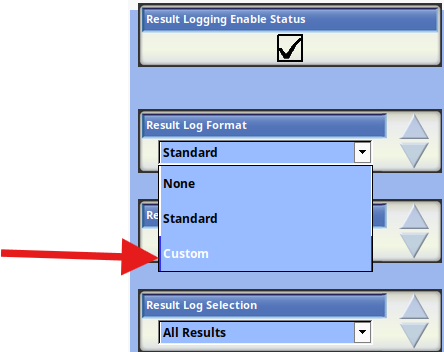

Then I do this to set the display height like below, which works fine. But the drop down color covers the Highlight rectangle color. Why? See image. Blue selection rectangle missing.

_DropList.SetDisplay(Single<DropListFontDisplay>(),35);

Thanks
lmonda

Attachment: DropList.png
(Size: 26.58KB, Downloaded 77 times)

Report message to a moderator

Re: DropList Items Text highlight area height [message #62059 is a reply to message #62058]

Thu, 17 September 2026 19:31

Oblivion
Messages: 1284
Registered: August 2007

Senior Contributor

Since droplist expects a display object, it passed "style" variable, which is an enum part of Display

class Display : public Pte<Display> {
public:
	enum {
		CURSOR   = 0x01,
		FOCUS    = 0x02,
		SELECT   = 0x04,
		READONLY = 0x08,
	};

So,

struct MyDisplay : Display {
	void Paint(Draw &w, const Rect &r, const Value &q, Color ink, Color paper, dword style) const override
	{
		w.DrawRect(r, style & CURSOR ? SColorHighlight : SRed());
		w.DrawText(r.left, r.top, q.ToString(), StdFont(), Black());
	}
};
struct MyApp : TopWindow  {
	DropList list;
	MyApp()
	{
		Sizeable().Zoomable().CenterScreen().SetRect(0, 0, 400, 400);
		Add(list.HCenterPos(300).VCenterPos());

		list.SetDisplay(Single<MyDisplay>());
		for(int i = 0; i < 5; i++)
			list.Add(i).SetLineCy(i, GetStdFontCy() * max(i, 1));
		list.GoBegin();

	}
};

GUI_APP_MAIN
{
	MyApp().Run();
}

Should work (if this is what you meant):

/forums/index.php?t=getfile&id=7177&private=0

Best regards,
Oblivion

Attachment: Ekran Görüntüsü 2026-09-17 20-30-50.png
(Size: 8.15KB, Downloaded 122 times)

Github page: https://github.com/ismail-yilmaz
Bobcat the terminal emulator: https://github.com/ismail-yilmaz/Bobcat
TerminalCtrl package https://github.com/ismail-yilmaz/Terminal

Report message to a moderator

Re: DropList Items Text highlight area height [message #62060 is a reply to message #62059]

Fri, 18 September 2026 06:23

lmonda
Messages: 11
Registered: March 2025
Location: USA

Promising Member

Hi Oblivion,

Thanks, Let me try this.

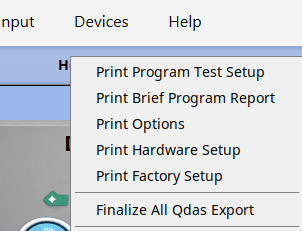

Also I have a menubar popup where I add Text to the menu bar with Add().
How do I change menu item Text height? Menubar does not have set height member.

MenuBar menu;
   menu.Add(t_("Print Program Test Setup"), THISBACK(PrintTestSetupReportCB)).;
   menu.Add(t_("Print Brief Program Report"), THISBACK(PrintBriefTestReportCB));
   menu.Add(t_("Print Options"), THISBACK(PrintOptionsReportCB));
   menu.Add(t_("Print Hardware Setup"), THISBACK(PrintHdwrSetupCB));
   menu.Add(t_("Print Factory Setup"), THISBACK(PrintFactoryConfigCB));
   menu.Separator();
#ifndef ENABLE_PART11
   menu.Add(t_("Login/Logout"), THISBACK(ShowLoginCB));
   menu.Add(t_("Forgot Password"), THISBACK(ShowPasswordForgotCB));
   menu.Separator();

Thanks
Lakshmi.
