Upp 2007.1rc3 released [message #8405]

Wed, 07 March 2007 09:55

unodgs
Messages: 1367
Registered: November 2005
Location: Poland

Ultimate Contributor

- fixed foucsing problem in X
- fixed missing flagNOGTK
- fixed problems with compiling sqlite references and examples
* HomeBudget always try to create database - now it works in release mode

Report message to a moderator

Re: Upp 2007.1rc3 released [message #8407 is a reply to message #8405]

Wed, 07 March 2007 17:51

mirek
Messages: 14291
Registered: November 2005

Ultimate Member

This came in the email:

#upp-2007.1rc3 on linux, tries to build win32 components


c++ -c -march=k8 -m32 -pipe -O3 -ffunction-sections -x c++ -Iuppsrc
-I/usr/include/freetype2 -DflagGUI -DflagGCC -DflagSHARED -DflagLINUX
uppsrc/CtrlLib/Ch.cpp -o build/Ctrl Lib/GCC33-Gcc32-Gui-Linux/Ch.o
make: *** No rule to make target `uppsrc/CtrlLib/XpTheme.dli', needed by
`build/CtrlLib
/GCC33-Gcc32-Gui-Linux/ChWin32.o'.  Stop.

Mirek

Report message to a moderator

Re: Upp 2007.1rc3 released [message #8408 is a reply to message #8405]

Wed, 07 March 2007 18:24

ebojd
Messages: 225
Registered: January 2007
Location: USA

Experienced Member

Attached you will find a patched linux Makefile for uppsrc/ide/Makefile

The following changes were made:

*) use of pkg-config for both CINC and LIBS.
*) change of $(OutFile) definition to use $(LIBS) instead
*) renamed the "install" tag to "prebuild" to more accurately reflect the fact that it is setting things up to install instead of actually installing them
*) added an actual "install" tag which installs theIDE and all appropriate source into the system via INSTALLDIR. This allows a user to build the code and install it into non-standard places without root privlages.
*) renamed default build and install directories to better conform to *NIX conventions and the Standard Linux Distribution -- for starters installing in /usr/bin and /usr/share/upp.

I hope this is useful.

I am currently testing the cleaned up ebuild...

EBo --

Attachment: Makefile
(Size: 881.59KB, Downloaded 507 times)

[Updated on: Wed, 07 March 2007 18:25]

Report message to a moderator

Re: Upp 2007.1rc3 released [message #8409 is a reply to message #8407]

Wed, 07 March 2007 19:50

guido
Messages: 169
Registered: April 2006

Experienced Member

Quote:

#upp-2007.1rc3 on linux, tries to build win32 components

Not here. At least using the generated Makefile.
I added the missing pkg-config commands for gtk+-2.0 and built TheIDE with make without a hitch.

Guido

Report message to a moderator

Re: Upp 2007.1rc3 released [message #8410 is a reply to message #8409]

Wed, 07 March 2007 20:02

ebojd
Messages: 225
Registered: January 2007
Location: USA

Experienced Member

Hi Guido,

How different is your Makefile changes to the one I just posted?

EBo --

Report message to a moderator

Re: Upp 2007.1rc3 released [message #8411 is a reply to message #8410]

Wed, 07 March 2007 20:51

guido
Messages: 169
Registered: April 2006

Experienced Member

ebojd wrote on Wed, 07 March 2007 20:02

How different is your Makefile changes to the one I just posted?

I only added pkg-config cflags to CINC:

CINC =  -I$(UPPDIR1) `pkg-config --cflags gtk+-2.0` -I/usr/include/freetype2

and added the line:

LINKOPTIONS = `pkg-config --libs gtk+-2.0`

It's only a temporary hack to get it compiled, since I can't figure out a how to do this in the GUI. The upp documentation for building is outdated und no longer applies.
I'm not much interessted in hacking the Makefile, since I expect to be able to build from TheIDE. lsb-rpm integration some time in a future would be nice too.

Guido

Report message to a moderator

Re: Upp 2007.1rc3 released [message #8412 is a reply to message #8411]

Wed, 07 March 2007 21:08

ebojd
Messages: 225
Registered: January 2007
Location: USA

Experienced Member

Guido,

I replaced all the libs with the output from `pkg-config --libs libpng gtk+-2.0 xft x11`. This properly dealt with everything (similarly for --cflags).

I hacked a little on theIDE builder to add pkg-config configuration. After communicating with Mirek I decided to wait on that for later discussion.

The real reason I hacked the Makefile is that I was told that the Makefile was hand modified after generation, and I am working on cleaning up the Gentoo portage ebuild...

EBo --

Report message to a moderator

Re: Upp 2007.1rc3 released [message #8413 is a reply to message #8405]

Thu, 08 March 2007 06:37

lundman
Messages: 175
Registered: March 2006
Location: Tokyo

Experienced Member

OsX (no GTK build):

/Users/lundman/Desktop/upp-src-2007.1rc3/uppsrc/Draw/DrawX11.cpp:11:21: error: gtk/gtk.h: No such file or directory

#ifndef NOGTK
#include <gtk/gtk.h>

Changed to:

#ifndef flagNOGTK

... normally I would not mention warnings, but the whole damn thing builds so cleanly, that is worth mentioning the one only warnings there are:

/Users/lundman/Desktop/upp-src-2007.1rc3/uppsrc/ide/Goto.cpp: In constructor 'GotoDlg::GotoDlg(const Upp::String&)':
/Users/lundman/Desktop/upp-src-2007.1rc3/uppsrc/ide/Goto.cpp:138: warning: enumeral mismatch in conditional expression: '<anonymous enum>' vs 'Upp::<anonymous enum>'/Users/lundman/Desktop/upp-src-2007.1rc3/uppsrc/ide/Goto.cpp: In constructor 'GotoDlg::GotoDlg(const Upp::String&)':
/Users/lundman/Desktop/upp-src-2007.1rc3/uppsrc/ide/Goto.cpp:138: warning: enumeral mismatch in conditional expression: '<anonymous enum>' vs 'Upp::<anonymous enum>'

/Users/lundman/Desktop/upp-src-2007.1rc3/uppsrc/ide/UppWspc.cpp: In member function 'void WorkspaceWork::FileMenu(Upp::Bar&)':
/Users/lundman/Desktop/upp-src-2007.1rc3/uppsrc/ide/UppWspc.cpp:413: warning: enumeral mismatch in conditional expression: 'Upp::<anonymous enum>' vs 'Upp::<anonymous enum>'
/Users/lundman/Desktop/upp-src-2007.1rc3/uppsrc/ide/UppWspc.cpp: In member function 'void WorkspaceWork::FileMenu(Upp::Bar&)':
/Users/lundman/Desktop/upp-src-2007.1rc3/uppsrc/ide/UppWspc.cpp:413: warning: enumeral mismatch in conditional expression: 'Upp::<anonymous enum>' vs 'Upp::<anonymous enum>'

After that:

file Desktop/upp-src-2007.1rc3/ide.App/Contents/MacOS/ide
Desktop/upp-src-2007.1rc3/ide.App/Contents/MacOS/ide: Mach-O universal binary with 2 architectures
Desktop/upp-src-2007.1rc3/ide.App/Contents/MacOS/ide (for architecture ppc):  Mach-O executable ppc
Desktop/upp-src-2007.1rc3/ide.App/Contents/MacOS/ide (for architecture i386): Mach-O executable i386

Report message to a moderator

Re: Upp 2007.1rc3 released [message #8420 is a reply to message #8405]

Thu, 08 March 2007 15:29

guido
Messages: 169
Registered: April 2006

Experienced Member

rc3 bugs so far:

- BLITZ broken: ld goes to 100% CPU for minutes, until I lose patience and kill it from the terminal (upp still doesn't terminate its sub-processes, when the build is interrupted)
- Sqlite.h casing is still inconsistent
- gdk/gdkprivate.h header can and should be dropped

Guido

Report message to a moderator

Re: Upp 2007.1rc3 released [message #8425 is a reply to message #8405]

Thu, 08 March 2007 19:05

guido
Messages: 169
Registered: April 2006

Experienced Member

rc3 bugfix Smile

The saving trouble with UWord is caused by inproper use of editor.IsModified(),
which prevents unmodified buffers from being renamed.
I did some UWord file saving refactoring to fix this.
Not sure about the implications of lrufile().NewEntry(filename),
so maybe this instruction belongs somewhere else.

void UWord::SaveNow()
{
	if(SaveFile(filename, editor.GetQTF())) {
		lrufile().NewEntry(filename);
		statusbar.Temporary("File " + filename + " was saved.");
		ClearModify();
	}
	else
		Exclamation("Error saving the file [* " + DeQtf(filename) + "]!");
}

void UWord::Save()
{
	if(!editor.IsModified())
		return;
	if(filename.IsEmpty())
		SaveAs();
	else
		SaveNow();

}

void UWord::SaveAs()
{
	FileSel& fs = UWordFs();
	if(fs.ExecuteSaveAs()) {
		filename = fs;
		Title(filename);
		SaveNow();
	}
}

PS:
Linking is real slow, even in DEBUG_FULL non-BLITZ.
Has it always been that way? I didn't use upp intensly enough to tell.
Maybe time to backport uldar to Linux - where is the source anyway?

Guido

Report message to a moderator

Re: Upp 2007.1rc3 released [message #8427 is a reply to message #8425]

Thu, 08 March 2007 21:16

waxblood
Messages: 95
Registered: January 2007

Member

Quote:

Linking is real slow, even in DEBUG_FULL non-BLITZ.
Has it always been that way? I didn't use upp intensly enough to tell.
Maybe time to backport uldar to Linux - where is the source anyway?

Look at this thread:
http://www.ultimatepp.org/forum/index.php?t=msg&goto=659 5&&srch=linux+linking#msg_6595"

Ciao,
David

[Updated on: Thu, 08 March 2007 21:18]

Report message to a moderator

Re: Upp 2007.1rc3 released [message #8430 is a reply to message #8427]

Thu, 08 March 2007 22:16

guido
Messages: 169
Registered: April 2006

Experienced Member

waxblood wrote on Thu, 08 March 2007 21:16

Look at this thread:
http://www.ultimatepp.org/forum/index.php?t=msg&goto=659 5&&srch=linux+linking#msg_6595"

O great! Sow this was fixed half a year ago Rolling Eyes

What do I do? I could build binutils-2.17.50.0.12 and install to /usr/local. Does this work?
Or better use gcc-3.4.6 in the meantime?

Guido

[Updated on: Thu, 08 March 2007 22:17]

Report message to a moderator

Re: Upp 2007.1rc3 released [message #8433 is a reply to message #8425]

Fri, 09 March 2007 00:04

mirek
Messages: 14291
Registered: November 2005

Ultimate Member

guido wrote on Thu, 08 March 2007 13:05

rc3 bugfix Smile

void UWord::SaveNow()
{
	if(SaveFile(filename, editor.GetQTF())) {
		lrufile().NewEntry(filename);
		statusbar.Temporary("File " + filename + " was saved.");
		ClearModify();
	}
	else
		Exclamation("Error saving the file [* " + DeQtf(filename) + "]!");
}

void UWord::Save()
{
	if(!editor.IsModified())
		return;
	if(filename.IsEmpty())
		SaveAs();
	else
		SaveNow();

}

void UWord::SaveAs()
{
	FileSel& fs = UWordFs();
	if(fs.ExecuteSaveAs()) {
		filename = fs;
		Title(filename);
		SaveNow();
	}
}

BTW, as I am puzzled about BLITZ report, is not it possible it was just this problem only (slow linking with debug info)?

Mirek

Report message to a moderator

Re: Upp 2007.1rc3 released [message #8434 is a reply to message #8405]

Fri, 09 March 2007 00:37

exolon
Messages: 62
Registered: July 2006
Location: 53'21N 6'18W

Member

I get this problem in GridUtils.h compiling the HomeBudget example... seems flagGCC is un#defined when it's expected to be for GCC?

----- GridCtrl ( GUI GCC32 SHARED BLITZ LINUX ) (3 / 12)
BLITZ: GridBase.cpp GridDisplay.cpp GridCtrl.cpp GridSort.cpp GridUtils.cpp
/home/oisin/upp/uppsrc/GridCtrl/GridUtils.h: In function �Upp::int32 Upp::Round(double)�:
/home/oisin/upp/uppsrc/GridCtrl/GridUtils.h:11: error: expected `(' before �fld�
/home/oisin/upp/uppsrc/GridCtrl/GridUtils.h:11: error: �fld� was not declared in this scope
/home/oisin/upp/uppsrc/GridCtrl/GridUtils.h:11: error: expected `;' before �a�
/home/oisin/upp/uppsrc/GridCtrl/GridCtrl.cpp: In member function �void Upp::GridCtrl::StdMenuBar(Upp::Bar&)�:
/home/oisin/upp/uppsrc/GridCtrl/GridCtrl.cpp:534: warning: enumeral mismatch in conditional expression: �Upp::<anonymous enum>� vs �Upp::
	<anonymous enum>�

Also, now scrollbar arrows don't look right for me - seemed ok in rc2...?

index.php?t=getfile&id=483&private=0

Firefox is running on the left with the standard scrollbars for this theme (I'm running XFCE), with the U++ ide on the right showing oversized scroll arrow symbols.

Attachment: upp_scrollbar_bottom.png
(Size: 5.69KB, Downloaded 1688 times)

Report message to a moderator

Re: Upp 2007.1rc3 released [message #8435 is a reply to message #8433]

Fri, 09 March 2007 01:12

guido
Messages: 169
Registered: April 2006

Experienced Member

luzr wrote on Fri, 09 March 2007 00:04

BTW, as I am puzzled about BLITZ report, is not it possible it was just this problem only (slow linking with debug info)?

Well, I waited 10min max. for ld to complete its job.
Mind you, not running the latest gear.
Yeah, possible linking would succeed eventually, given zen like patience Very Happy

Nevertheless, I hoped with the latest patches to linux process handling, upp would now shut down its spawned processes, when interrupted. Unfortunately, the latest compiler command still always will be completed, which can take quite a while. Not good for productivity.

I would like to know a little about what you did to ld with uldar.
Probably too tricky for me to tackle, but now I'm curious.

Guido

Report message to a moderator

Re: Upp 2007.1rc3 released [message #8436 is a reply to message #8435]

Fri, 09 March 2007 09:37

lundman
Messages: 175
Registered: March 2006
Location: Tokyo

Experienced Member

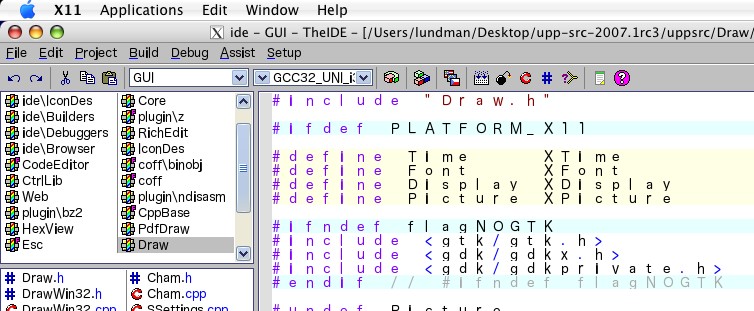

Still got somewhat of a strange double byte issue. If launched from IDE (presumably clean environment, it looks normal.) If launched from Console (ja_JP.UTF-8) it is a little messed:

index.php?t=getfile&id=484&private=0

Un-setting LC_CTYPE makes it normal, just a hassle Smile

Attachment: Picture 1.jpg
(Size: 92.91KB, Downloaded 1607 times)

Report message to a moderator

Re: Upp 2007.1rc3 released [message #8437 is a reply to message #8435]

Fri, 09 March 2007 11:32

mirek
Messages: 14291
Registered: November 2005

Ultimate Member

guido wrote on Thu, 08 March 2007 19:12

I would like to know a little about what you did to ld with uldar.

Actually, nothing. uld is complete rewrite from the scratch, there is not a bit of ld code in it (in fact, AFAIK, Tom did not even seen ld sources ever, just COFF specification).

If something makes uld fast, it is U++ Core Wink

(It will be interesting how new faster Core will change things Wink

Mirek

Report message to a moderator

Re: Upp 2007.1rc3 released [message #8438 is a reply to message #8434]

Fri, 09 March 2007 11:35

mirek
Messages: 14291
Registered: November 2005

Ultimate Member

exolon wrote on Thu, 08 March 2007 18:37

Also, now scrollbar arrows don't look right for me - seemed ok in rc2...?

Nothing has changed. What distro/theme is that?

All that gtk theming is not very well defined, there is a lot of heirestics involved. I guess we will have to resolve theme issues one by one...

MIrek

Report message to a moderator

Re: Upp 2007.1rc3 released [message #8439 is a reply to message #8433]

Fri, 09 March 2007 15:48

guido
Messages: 169
Registered: April 2006

Experienced Member

luzr wrote on Fri, 09 March 2007 00:04

BTW, as I am puzzled about BLITZ report, is not it possible it was just this problem only (slow linking with debug info)?

So, I got binutils-2.17.50.0.12 from kernel.org, built it and installed into /usr/local. Linking is down to seconds again Very Happy

Guido

Report message to a moderator

Re: Upp 2007.1rc3 released [message #8440 is a reply to message #8438]

Fri, 09 March 2007 16:03

guido
Messages: 169
Registered: April 2006

Experienced Member

luzr wrote on Fri, 09 March 2007 11:35

All that gtk theming is not very well defined, there is a lot of heirestics involved. I guess we will have to resolve theme issues one by one...

Considering, you will probably find yourself hand-crafting a Mac theme in the future, as you do the Carbon port, time to explore this route again.
I don't know if Mozilla and wxGTK suffers from such bugs, indicating if this can of worms can be sealed eventually.
An ISV should find it quite annoying, dealing with gtk related theming bug reports, introduced by the latest mandriva, fedora, novell... foobar theme engine.

Guido

Report message to a moderator

Re: Upp 2007.1rc3 released [message #8441 is a reply to message #8438]

Fri, 09 March 2007 18:08

exolon
Messages: 62
Registered: July 2006
Location: 53'21N 6'18W

Member

luzr wrote on Fri, 09 March 2007 10:35

exolon wrote on Thu, 08 March 2007 18:37

Also, now scrollbar arrows don't look right for me - seemed ok in rc2...?

Nothing has changed. What distro/theme is that?

All that gtk theming is not very well defined, there is a lot of heirestics involved. I guess we will have to resolve theme issues one by one...

Using XFCE (a slightly thinner Gnome window manager), this was the "H2O-gtk2-Saphire" (sic) theme.

I switched themes just now (to a nicer looking one called "Glossy P"), and U++ matches its scrollbars perfectly. Looks really good.
Dunno what this means!

BTW, Firefox goes nuts and eats 100% CPU forever (it seems) when changing themes while it's open. Poor coding eh? Wink

nice....

Attachment: upp_xfce_glossyp_scrollbar_bottom.png
(Size: 7.53KB, Downloaded 1243 times)

[Updated on: Fri, 09 March 2007 18:12]

Report message to a moderator

Re: Upp 2007.1rc3 released [message #8448 is a reply to message #8441]

Fri, 09 March 2007 18:44

mirek
Messages: 14291
Registered: November 2005

Ultimate Member

exolon wrote on Fri, 09 March 2007 12:08

luzr wrote on Fri, 09 March 2007 10:35

exolon wrote on Thu, 08 March 2007 18:37

Also, now scrollbar arrows don't look right for me - seemed ok in rc2...?

Nothing has changed. What distro/theme is that?

All that gtk theming is not very well defined, there is a lot of heirestics involved. I guess we will have to resolve theme issues one by one...

This means that U++ look heurestics fail for H2O-gtk2-Saphire, but work well for "Glossy P" Smile

The real reason is that gtk theming system is one big mess and theme engine developers use everything to make it even more messy... Smile

As U++ has to deal with both Win32 and GTK theming (in future, with MacOS X as well), mapping between GTK theme engine entities and U++ look entities is not 1:1. There come heurestics that are trying what GTK provides and make something reasonable out of it...

Mirek

Report message to a moderator

Re: Upp 2007.1rc3 released [message #8621 is a reply to message #8405]

Wed, 21 March 2007 20:15

Werner
Messages: 234
Registered: May 2006
Location: Cologne / Germany

Experienced Member

Trying to build TheIDE under Windows with GCC (MinGW) surprises me.

Building with the UPP-included GCC 3.42 works buts says:

Linking...
(option '-O 2' ignored)
___main: duplicate
-> used: libmingw32.a:gccmain.o:1
-> discarded: libgcc.a:__main.o:1

Trying to build with GCC 4.11 fails saying:

Linking...
...\MinGW411\bin\ld.exe: crt2.o: No such file: No such file or directory
collect2: ld returned 1 exit status

Trying to build with GCC 4.12 fails saying:

Linking...
...\MinGW412\bin\ld.exe: cannot find -lws2_32
collect2: ld returned 1 exit status

As far as I remember Upp 2007.1rc2 built fine as with GCC 3.42 as with GCC 4.11. (GCC 4.12 was not yet available.)

Werner

Report message to a moderator

Re: Upp 2007.1rc3 released [message #8622 is a reply to message #8621]

Wed, 21 March 2007 20:27

mirek
Messages: 14291
Registered: November 2005

Ultimate Member

Werner wrote on Wed, 21 March 2007 15:15

This is standard, this is just uld's warning, in fact caused by problem in mingw (duplicate definition of main).

BTW, speaking about it, future support of mingw might get a bit problematic, as mingw does not support TLS variables, which is something that new (not in 2007.1 releases) U++ allocator depends on to improve performance.... GCC performance will therefore likely be crippled.

Mirek

Report message to a moderator

Re: Upp 2007.1rc3 released [message #8693 is a reply to message #8621]

Sun, 25 March 2007 10:52

Werner
Messages: 234
Registered: May 2006
Location: Cologne / Germany

Experienced Member

Problems solved. Compare my updated message #7514.

Werner

[Updated on: Sun, 25 March 2007 13:22]

Report message to a moderator

Previous Topic:	upp-portage experimental release
Next Topic:	Upp 2007.1rc4 released

Goto Forum:

-=] Back to Top [=-

[ Syndicate this forum (XML) ] [

] [

]

Current Time: Sat Jun 20 22:45:40 GMT+2 2026

Total time taken to generate the page: 0.01041 seconds
