If your target is small disk space, you should rather allocate data in memory in reasonable common sizes, semantically grouped together, and run that through zlib compression, if those data resemble at least some patterns, this should save lot more, than packing them into bits and later having headache when you will want to extend them a bit.

Hello,

I was thinking about using Bits as an efficient data structure to write my data to disk. However, I noticed that this data structure is quite closed and does not allow callers to retrieve a pointer to the internal buffer of bits and neither does it allow itself being constructed from existing buffer and alloc variables.

Would it be a good idea to allow this, or have a similar data structure that allows retrieval of the data structure? If not, why do you think so? I now manually edited some support in, to see if my efficient idea works out well!

Thanks!

crydev

crydev wrote on Wed, 11 January 2017 17:07

Hello,

I was thinking about using Bits as an efficient data structure to write my data to disk. However, I noticed that this data structure is quite closed and does not allow callers to retrieve a pointer to the internal buffer of bits and neither does it allow itself being constructed from existing buffer and alloc variables.

Would it be a good idea to allow this, or have a similar data structure that allows retrieval of the data structure? If not, why do you think so? I now manually edited some support in, to see if my efficient idea works out well!

Thanks!

crydev

I guess this is valid idea. Adding to RM.

Mirek

Hello,

I changed the Bits class to expose its buffer and allocation variables, and ported my code using Vector<bool> to its equivalent using Bits. However, I realized that setting billions of bits in hot loops is very inefficient in Bits. The speedup I get from having to write 8 times less data to disk is eliminated by the slow computations.

Why is it so inefficient? Would it be a good idea to keep using Vector<bool>, and convert to Bits before writing to the file?

Thanks,

crydev

A ran the following code in a performance test 100,000 times.

// Original function implementing Vector<bool>.
const int VectorBoolOrBitsetTestOriginal(bool* const buffer, const bool* const rand)
{
	int x = 0;
	for (int i = 0; i < 4096; ++i)
	{
		if (rand)
		{
			++x;
		}
		buffer[i] = rand;
	}
	return x;
}

// Different function implementing Bits.
const int VectorBoolOrBitsetTestBitSet(Bits& buffer, const bool* const rand)
{
	int x = 0;
	for (int i = 0; i < 4096; ++i)
	{
		if (rand)
		{
			++x;
		}
		buffer.Set(i, rand);
	}
	return x;
}

// Different function implementing std::bitset.
const int VectorBoolOrBitsetTestStdBitSet(std::bitset<4096>& buffer, const bool* const rand)
{
	int x = 0;
	for (int i = 0; i < 4096; ++i)
	{
		if (rand)
		{
			++x;
		}
		buffer.set(i, rand);
	}
	return x;
}

The result is as follows, Bits being approximately a factor 10 slower. std::bitset already seems to be a twice as fast:



crydev

const byte *ReadRaw(int& count_of_bytes);
byte *WriteRaw(int count_of_bytes);

P.S.: Are you sure that your Test code is doing what you wanted it to do? It looks to me like there should be something like *rand++ in it...

mirek wrote on Tue, 25 April 2017 10:34

P.S.: Are you sure that your Test code is doing what you wanted it to do? It looks to me like there should be something like *rand++ in it...

The above testing code is a subset of my real code, where x is a value I just introduced to have a return value to show. It does not represent anything, and shouldn't be taken into account. The rand variable is a pointer to an array of random bools. I wanted to use it to create some randomness, but I didn't really succeed there. I solely wanted to point out the runtime of the different implementations.

Any ideas about the proper "raw data" interface?

It is still weird that you are getting different numbers than me.

Could you perhaps try my benchmark?

Are you benchmarking "release" mode?

What CPU / Compiler are you using? Do you have latest theide (with FAST release mode always on)?

mirek wrote on Tue, 25 April 2017 13:39

It is still weird that you are getting different numbers than me.

Could you perhaps try my benchmark?

Are you benchmarking "release" mode?

What CPU / Compiler are you using? Do you have latest theide (with FAST release mode always on)?

I updated my TheIDE to the latest version, but it did not make a difference. I am using the Visual C++ compiler from Visual Studio 2015. My CPU is a Core i7 2600k. I compiled with Release mode, and the following compiler flags: -O2 /GS- /Qvec-report:2

What is FAST release mode? I also tried your RTIMING option, but it gives me the same results as my own measurement.

crydev wrote on Tue, 25 April 2017 14:03

mirek wrote on Tue, 25 April 2017 13:39

It is still weird that you are getting different numbers than me.

Could you perhaps try my benchmark?

Are you benchmarking "release" mode?

What CPU / Compiler are you using? Do you have latest theide (with FAST release mode always on)?

I updated my TheIDE to the latest version, but it did not make a difference. I am using the Visual C++ compiler from Visual Studio 2015. My CPU is a Core i7 2600k. I compiled with Release mode, and the following compiler flags: -O2 /GS- /Qvec-report:2

What is FAST release mode? I also tried your RTIMING option, but it gives me the same results as my own measurement.

Weird the only difference seems to be CPU (i7 4771 here)...

Have you tried my benchmark as it is?

That said, even if those numbers you are getting were real, I guess it is now close to Vector<bool> anyway.

Problem with this approach is that you have to create intput Vector<bool> argument first, which is likely to spoil any benefits from faster Bits...

Really, this is the issue - to improve speed here, the interface is problem.

Some possible solutions that came to my mind:

void Bits::Set(int pos, int count, dword bits);

Here count <= 32 and you are passing values in bits dword; that would work if you are packing some normal data into Bits.

template
void Bits::Set(int pos, int count, auto lambda /* [=] (int pos) -> bool */)

Here we would provide lambda that returns value for given position - if compiler is good, it should inline well.

tempalte
void Bits::Set(int pos, bool x ...)

Maybe vararg template is a possible solution to the problem too.

Now the question is: How are you using Bits?

Mirek

I understand that vectorized versions of the Bits::Set function are not portable and should not be in U++ for portability reasons,

String Bits::ToString() const
{
	String ss;
	for(int i = alloc-1; i >= 0; i--)
		ss << FormatIntHex(bp[i]);
	return ss;
}

Hi Mirek,

I realized that my pipelined function was wrong. I made a silly mistake in the test case. The function is now fixed as:

// Testing pipelined version of Bits::Set(int, bool)
void Bits::PipelineSet(int i, const dword bs)
{
	// Check whether i is within the bounds of the container.
	ASSERT(i >= 0 && alloc >= 0);

	// Get the DWORD index for the internal buffer.
	int q = i >> 5;

	// Get the bit index of the next available DWORD.
	i &= 31;

	// Do we need to expand the internal buffer first?
	// Also check whether we can place 4 bits in the existing DWORD. If not, we should expand.
	if(q >= alloc)
		Expand(q);

	// Get integer bit values according to existing DWORD value and indices.
	// Assuming default value of bool is 0x1 if true!
	const dword d1 = !!(bs & PowersOfTwo[0]) << i;
	const dword d2 = !!(bs & PowersOfTwo[8]) << (i + 1);
	const dword d3 = !!(bs & PowersOfTwo[16]) << (i + 2);
	const dword d4 = !!(bs & PowersOfTwo[24]) << (i + 3);
	bp[q] = (bp[q] | d1 | d2 | d3 | d4);
}

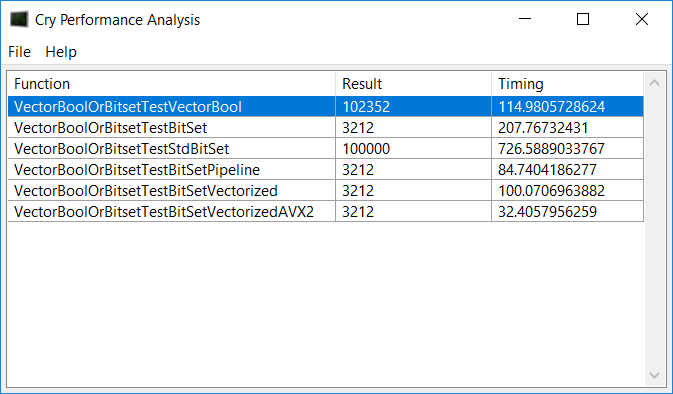

I did some more tests, and I am really surprised by the amount of difference the compiler and CPU make in this situation. I had to switch from my i7 2600k CPU to an Intel Core i7 4710MQ CPU because I was missing AVX2 (AVX2 really made it fast) When compiled with the Visual C++ compiler, I got the following result.



I was surprised to see how the newer CPU runs the simple pipelined version a lot faster than the 2600k! I also saw that a vectorized version of the Set function is almost simpler than the regular one. However, when I use the Intel C++ compiler, the results are very different:



It seems that the Intel compiler generates way different code, making the SSE2 version blazingly fast. 10 times faster than the regular Set function. The strange thing is, that when I use the Visual C++ compiler, the timing of the different test cases is as I expected them to be. I expected the AVX2 function to be faster than the SSE2 one, which clearly is not the case with the Intel compiler.

The sources of my vectorized functions is as following:

// Testing vectorized version of Bits::Set(int, bool)
// We require that the input bools have value 0x80, e.g. most significant byte set if true.
void Bits::VectorSet(int i, const unsigned char vec[16])
{
	// Check whether i is within the bounds of the container.
	ASSERT(i >= 0 && alloc >= 0);

	// Get the DWORD index for the internal buffer.
	int q = i >> 5;

	// Do we need to expand the internal buffer first?
	if(q >= alloc)
		Expand(q);

	// Get the bit index of the next available DWORD.
	i &= 31;

	// Create a bitmask with vector intrinsics.
	__m128i boolVec = _mm_set_epi8(vec[15], vec[14], vec[13], vec[12], vec[11], vec[10], vec[9], vec[8]
		, vec[7], vec[6], vec[5], vec[4], vec[3], vec[2], vec[1], vec[0]);
	const int bitMask = _mm_movemask_epi8(boolVec);

	// Set the resulting WORD.
	LowHighDword w;
	w.dw = bp[q];
	if (i == 16)
	{
		w.w2 = (short)bitMask;
	}
	else
	{
		w.w1 = (short)bitMask;
	}
	bp[q] = w.dw;
}

// The same vectorized function, but with AVX2 instructions.
void Bits::VectorSetAVX2(int i, const unsigned char vec[32])
{
	// Check whether i is within the bounds of the container.
	ASSERT(i >= 0 && alloc >= 0);

	// Get the DWORD index for the internal buffer.
	int q = i >> 5;

	// Do we need to expand the internal buffer first?
	if(q >= alloc)
		Expand(q);

	// Get the bit index of the next available DWORD.
	i &= 31;

	// Create a bitmask with vector intrinsics.
	__m256i boolVec = _mm256_set_epi8(vec[31], vec[30], vec[29], vec[28], vec[27], vec[26], vec[25], vec[24], vec[23]
		, vec[22], vec[21], vec[20], vec[19], vec[18], vec[17], vec[16], vec[15], vec[14], vec[13], vec[12], vec[11]
		, vec[10], vec[9], vec[8], vec[7], vec[6], vec[5], vec[4], vec[3], vec[2], vec[1], vec[0]);
	const int bitMask = _mm256_movemask_epi8(boolVec);

	// Set the resulting DWORD.
	bp[q] = bitMask;
}

Is it feasible to make a vectorized version for U++ by default, or should I provide it for myself?

Thanks,

evo

I still think there is a glitch somewhere benchmarking this. Would it possible to post a whole package here?

Mirek

void PipelineSet(int i, const dword bs);
void VectorSet(int i, const unsigned char vec[16]);
void VectorSetAVX2(int i, const unsigned char vec[32]);

mirek wrote on Tue, 02 May 2017 23:55

I still think there is a glitch somewhere benchmarking this. Would it possible to post a whole package here?

Mirek

The testing application is on Bitbucket here (only runs on Windows): https://bitbucket.org/evolution536/cry-performance-test

You still have to add the following functions to the Bits class:

void PipelineSet(int i, const dword bs);
void VectorSet(int i, const unsigned char vec[16]);
void VectorSetAVX2(int i, const unsigned char vec[32]);

crydev

const int VectorBoolOrBitsetTestBitSetVectorized(Bits& buffer, const Vector<unsigned char>& randVec)
{
	const int count = randVec.GetCount();
	for (int i = 0; i < count; i += 16)
	{
		// Use the vectorized set method.
		buffer.VectorSet(i, &randVec[i]);
	}
	int alloc = 0;
	buffer.Raw(alloc);
	return alloc;
}

for(int i = 0; i < randValue.GetCount(); i++)
    bits.Set(i, randValue[i] > 50);

Well, it is what I thought:

const int VectorBoolOrBitsetTestBitSetVectorized(Bits& buffer, const Vector<unsigned char>& randVec)
{
	const int count = randVec.GetCount();
	for (int i = 0; i < count; i += 16)
	{
		// Use the vectorized set method.
		buffer.VectorSet(i, &randVec[i]);
	}
	int alloc = 0;
	buffer.Raw(alloc);
	return alloc;
}

This is not the proper benchmark. The large part of work is already done by grouping input bits into randVec, which is not included in the benchmark time IMO.

If you wanted the proper benchmark, you could e.g. set randVec to random values and then set bits in Bits for those values that satisfy some condition - that IMO will benchmark scenario closer to the real use. E.g. (for original Bits and random 0..100):

for(int i = 0; i < randValue.GetCount(); i++)
    bits.Set(i, randValue[i] > 50);

buffer.Set(i, rand[i]);

// vs.

buffer.VectorSet(i, &randVec[i]);

Why is it the case? The random vector is precomputed, and the only thing both testing functions do is set the random values to the underlying Bits:

crydev wrote on Wed, 03 May 2017 11:12

Why is it the case? The random vector is precomputed, and the only thing both testing functions do is set the random values to the underlying Bits:

Will you get that Vector<bool> (or bool *) for free in your app?

IMO, usual usage pattern will always be "check some condition, set the bit to result".

So the point I am trying to make is that with Bits, as they are, you are not required to "precompute" Vector<bool>. Which is why I think the benchmark is not telling the whole truth.

Mirek

I see what you mean! What test case would you propose? I implemented the Bits usage in my primary application again, and now with your changes, it finally starts to pay off using Bits instead. Also, thanks a lot for implementing the Raw and CreateRaw functions.

crydev wrote on Wed, 03 May 2017 12:24

I see what you mean! What test case would you propose? I implemented the Bits usage in my primary application again, and now with your changes, it finally starts to pay off using Bits instead. Also, thanks a lot for implementing the Raw and CreateRaw functions.

The one above... Set the primary array to Random(100), then sets bits to 1 to those >50. This of course will work without creating buffer single bit Set, but will require recomputing values into 0x0 / 0x80 buffer for vectorised version...

That said, I really am not opposed to vectorised version, I just do not think the interface is right. I would rather see something like

Set(int pos, bool b0, ...)

(varargs Set). That way it would be perhaps possible to work without precreating the buffer.

In either case, I think we should start with

Set(int pos, dword bits, int count);

Hi Mirek,

How do you feel about adding a Bits::Set function that allows the user to put in packed bools? I was thinking about a function such as the following:

void Bits::VectorSet(int i, const dword bits32)
{
	ASSERT(i >= 0 && alloc >= 0);
	int q = i >> 5;

	if(q >= alloc)
		Expand(q);

	i &= 31;

	// Just place the input DWORD in position q in the Bits data buffer.
	bp[q] = bits32;
}

Maybe with some checks, this is just an idea. I mean, this function works in my testcase because I only work with multiples of 32. Even though, this could be used as an assumption to make it fast. It accepts a bitset dword and directly sets it. This allows efficient use of the Bits structure while preparing the actual packed bools structure with SSE2 instructions like _mm_movemask_epi8.

Thanks!

crydev
