external library [message #45759]

Sat, 02 January 2016 21:50

Mq35
Messages: 10
Registered: January 2016

Promising Member

I wrote a test win32 console app. I connected to it external libraries. When i compile the project occurs the error: "xx.lib: error adding symbols: File in wrong format". What keys should I use to get rid of errors?

Report message to a moderator

Re: external library [message #45766 is a reply to message #45759]

Sun, 03 January 2016 11:05

koldo
Messages: 3464
Registered: August 2008

Senior Veteran

Hello Mq35

The information you have given us is very scarce... Probably you are using MinGW in Windows, is that so?

Maybe you could try first a hello application with plain C (no U++), link to it the libraries, one by one, to see what is the one that is the source of the problem. To do that you can open TheIDE, click on "New package" (lower right side), and choose "Console application (no U++)"

index.php?t=getfile&id=4908&private=0

Attachment: sc.JPG
(Size: 96.71KB, Downloaded 1438 times)

Best regards
Iñaki

Report message to a moderator

Re: external library [message #45768 is a reply to message #45766]

Sun, 03 January 2016 11:58

Mq35
Messages: 10
Registered: January 2016

Promising Member

I download stable version TheIDE with MINGW. And, I using it in Windows 10 pro (x64).

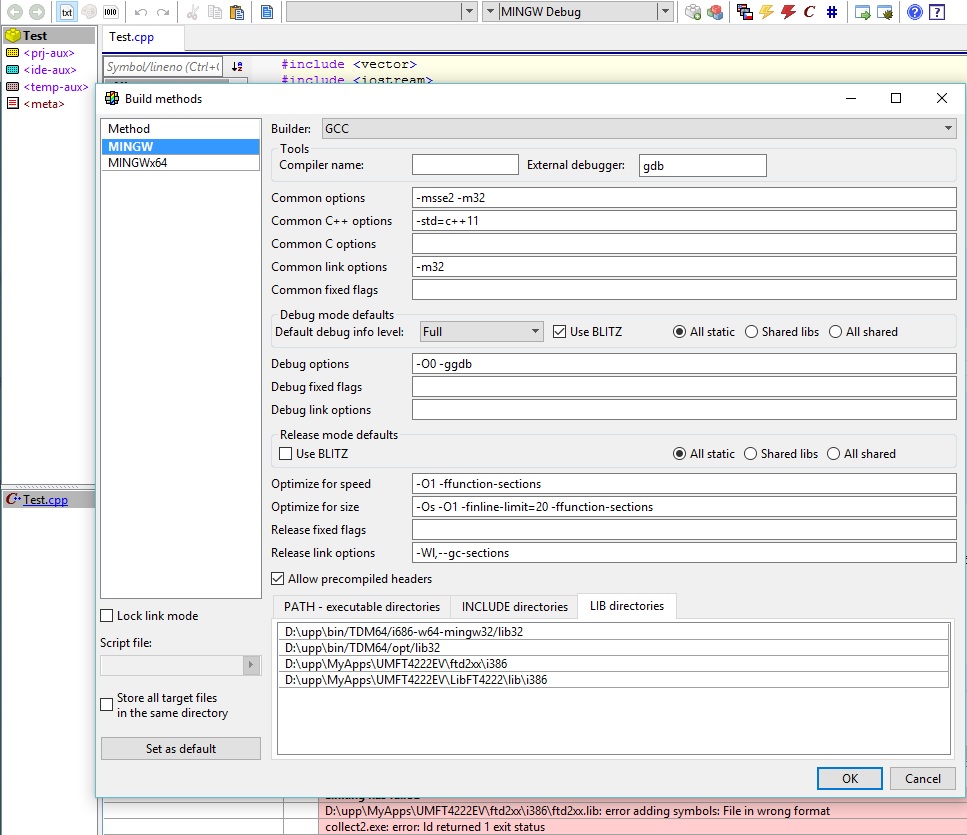

This problem occurs in my "Console application (no U++)". It is little programm (sample) for test the usb module (UMFT4222EV). But I do not linked it.

index.php?t=getfile&id=4909&private=0

MayBe do I need any keys for linker?

sorry, my english is very bad Sad

Attachment: 1.jpg
(Size: 205.07KB, Downloaded 1442 times)

Report message to a moderator

Re: external library [message #45770 is a reply to message #45768]

Sun, 03 January 2016 13:57

Mq35
Messages: 10
Registered: January 2016

Promising Member

I'll appreciate if someone explain me how to correct the error of the linker

Attachment: MyApps.zip
(Size: 242.96KB, Downloaded 466 times)

Report message to a moderator

Re: external library [message #45772 is a reply to message #45770]

Sun, 03 January 2016 14:27

koldo
Messages: 3464
Registered: August 2008

Senior Veteran

Hello Mq35

Program runs successfully with TDM MinGW and MSC15 32 bits, just by using your files unchanged.

Message printed is: No FT4222 device is found!, as it seems my computer does not have any FDTI chip. Before running it I should have to download the dll and lib from previous link in FDTI (Future Technology Devices Intl.), as the ftd2xx.dll file was not in the .zip.

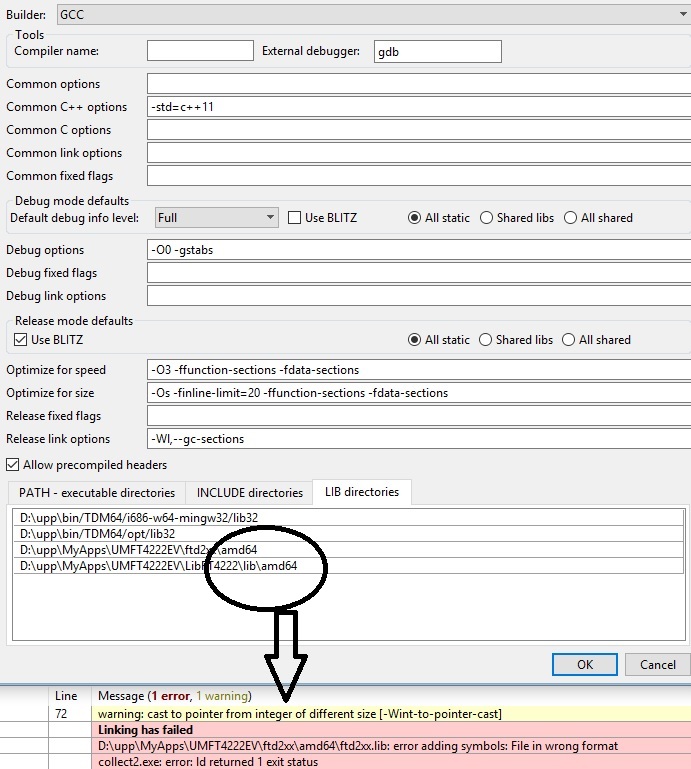

This is the screenshot of my "Build Methods". Please try with it:

index.php?t=getfile&id=4912&private=0
