Hello Mirek,

2) The light breeze-gtk theme on Manjaro for menu bar is broken. It means that top menu bar works correctly, but nested are not. I attached screenshot to show this issue. Left is upp, right is LibreOffice that handles it correctly.

In above text the menu item text should be black not white. Also, the new/updated styling algorith should do not break topiteam text. This might requires bigger reworked.

Klugier

Hello Mirek,

I found two issues

1) the first one is related to next/back stack for TheIDE build in help. It means that when you click on some entry for example "Assist++" you can not back to initial help menu. There are also problems with table of contents, it doesn't work in that view.

Also, when you open help for the first time after launching TheIDE it has back entry. It shouldn't be there and the stack should be empty.

Please test you, I believe you should find all mentioned issues pretty quickly.

Hello Mirek,

The issue has been fixed for Breeze Light and Dark. Thank you for that! You also forget to remove debug code in production (line 513 - ChGtk4.cpp):

PNGEncoder().SaveFile("/home/cxl/item.png", item);

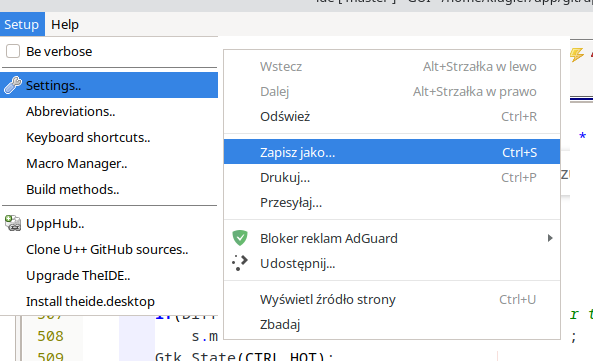

For other themes, I noticed that there is a issue for Adwaita (KDE Gtk Theme). The bar text should be white instead of black. I attached U++ (left) comparison with Chrom (right).


Klugier

int Diff(RGBA a, RGBA b)
{
	return max(abs(a.a - b.a), max(abs(a.r - b.r) / 2, max(abs(a.b - b.b) / 5, abs(a.g - b.g))));
}

Hello Mirek,

Alternative diff method doesn't help in this case. For the log in ChGtk3.cpp file:

"Start" = Start
"Before if" = Before if
c = Color(241, 246, 253)
s.itemtext = Color(255, 255, 255)
Diff(c, s.itemtext) = 9
"After if" = After if
c = Color(241, 246, 253)
s.itemtext = Color(0, 0, 0)
Diff(c, s.itemtext) = 246
"End" = End

Klugier

Another test code for failing configurable key parser:

	String s1 = "1;\n";
	String s2 = "1;";
	String s3 = "1";

	uint32 i = CParser(s1).ReadNumber(16);
	RLOG("1) Base 16: " << i);
	uint32 j = CParser(s1).ReadNumber(10);
	RLOG("1) Base 10: " << j);

	RLOG("-----");

	uint32 k = CParser(s2).ReadNumber(16);
	RLOG("2) Base 16: " << k);
	uint32 l = CParser(s2).ReadNumber(10);
	RLOG("2) Base 10: " << l);

	RLOG("-----");

	uint32 m = CParser(s3).ReadNumber(16);
	RLOG("3) Base 16: " << m);
	uint32 n = CParser(s3).ReadNumber(10);
	RLOG("3) Base 10: " << n);


Results:

1) Base 16: 20
1) Base 10: 1
-----
2) Base 16: 20
2) Base 10: 1
-----
3) Base 16: 1
3) Base 10: 1

Seems that CParser.GetNumber(16) is not reading the number correctly.

Best regards,
Oblivion

Hello Mirek,

After your last commit everything works as expected. I also tested other themes for regression, but they behave as expected. Thank you! Now, TheIDE help stabilization is waiting

Klugier

Klugier wrote on Sun, 21 May 2023 20:53

Hello Mirek,

After your last commit everything works as expected. I also tested other themes for regression, but they behave as expected. Thank you! Now, TheIDE help stabilization is waiting

Klugier

I have commited the fix yesterday, perhaps you missed it, or is is still in need of "stabilisation"?

mirek wrote on Mon, 22 May 2023 09:42

Klugier wrote on Sun, 21 May 2023 20:53

Hello Mirek,

After your last commit everything works as expected. I also tested other themes for regression, but they behave as expected. Thank you! Now, TheIDE help stabilization is waiting

Klugier

I have commited the fix yesterday, perhaps you missed it, or is is still in need of "stabilisation"?

Hello Mirek,

Everything works fine. I wrote my message after using your last commit from yesterday. We can assume for now that GTK menubar styling works as expected.

Klugier

Hi,

I found that in Linux Mint Cinnamon dark theme (Mint Y Dark Aqua), the drop down menu selection coloring was fixed to use white text with dark gray selection bar, but the main menu still uses black text with dark gray selection bar. Can this be fixed to use white text too?

UPDATE: More: For some reason, with light themes, U++ is using the 'colorization' color for main menu selection bar, whereas all the other applications tend to use the same colors as the drop down menu. I think setting the main menu to use all the same colors as the drop down menu would be the best choice here.

Hi Mirek,

Hope this helps...

With default light theme:

s.look = Image (32, 16)
dk = Color(48, 48, 48)
wh = Color(255, 255, 255)
After IsDark(wh):
dk = Color(48, 48, 48)
wh = Color(255, 255, 255)
s.topitemtext[0] = Color(48, 48, 48)
s.topitemtext[1] = Color(48, 48, 48)
s.topitemtext[2] = Color(33, 33, 33)
s.topitem[0] =
s.topitem[1] =
s.topitem[2] = Image (32, 16)
After Diff():
s.topitemtext[0] = Color(48, 48, 48)
s.topitemtext[1] = Color(48, 48, 48)
s.topitemtext[2] = Color(255, 255, 255)
s.topitem[0] =
s.topitem[1] =
s.topitem[2] = Color(53, 168, 84)

And dark theme:

s.look = Image (32, 16)
dk = Color(218, 218, 218)
wh = Color(64, 64, 64)
After IsDark(wh):
dk = Color(64, 64, 64)
wh = Color(218, 218, 218)
s.topitemtext[0] = Color(218, 218, 218)
s.topitemtext[1] = Color(218, 218, 218)
s.topitemtext[2] = Color(7, 7, 7)
s.topitem[0] =
s.topitem[1] =
s.topitem[2] = Image (32, 16)
After Diff():
s.topitemtext[0] = Color(218, 218, 218)
s.topitemtext[1] = Color(218, 218, 218)
s.topitemtext[2] = Color(7, 7, 7)
s.topitem[0] =
s.topitem[1] =
s.topitem[2] = Image (32, 16)

Best regards,

Tom

Hi,

For light theme:

AvgColor(s.topitem[2], SColorFace(), 0) = Color(0, 0, 0)
Diff(AvgColor(s.topitem[2], SColorFace(), 0), s.topitemtext[2]) = 33
SColorHighlight() = Color(53, 168, 84)
SColorHighlightText() = Color(255, 255, 255)

For dark theme:

AvgColor(s.topitem[2], SColorFace(), 0) = Color(245, 245, 245)
Diff(AvgColor(s.topitem[2], SColorFace(), 0), s.topitemtext[2]) = 238
SColorHighlight() = Color(31, 158, 222)
SColorHighlightText() = Color(255, 255, 255)

UPDATE: These are dumped just before if(Diff(...

Best regards,

Tom

Hi,

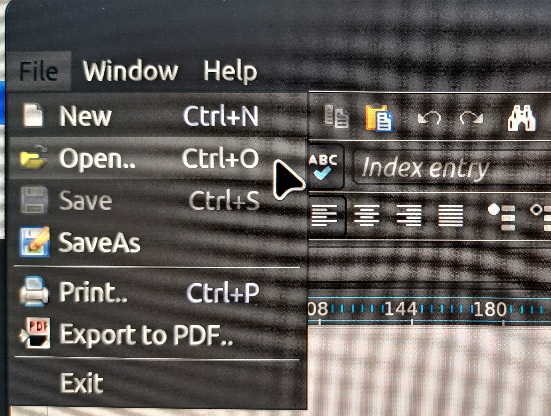

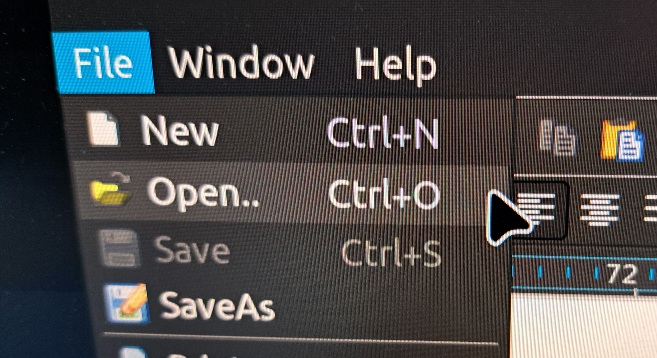

Here is a crappy shrinked photo attached... cannot take screenshot of the menu as it disappears! Anyway, you will get the picture.

BR, Tom

Hi,

This works here for both light and dark themes:

		s.topitemtext[2] = GetInkColor();
		Over(m, topitem);
		if(Diff(AvgColor(m), s.topitemtext[2]) < 100) {
			//s.topitem[2] = SColorHighlight(); // <<< Commenting this out helps!
			s.topitemtext[2] = SColorHighlightText();
		}
	}

Best regards,

Tom

Also please test with theide too - that has slightly different menu styling required.

mirek wrote on Tue, 23 May 2023 16:23

Also please test with theide too - that has slightly different menu styling required.

Thanks!
Everything seems to work just fine here with Linux Mint and many different themes. Also with TheIDE.

Is there any specific testing requirements for TheIDE, I should try?
