| Know what you're using. Size of some common types. [message #57902] |
Mon, 27 December 2021 19:33  |
Lance
Messages: 656
Registered: March 2007
|
Contributor |
|
|

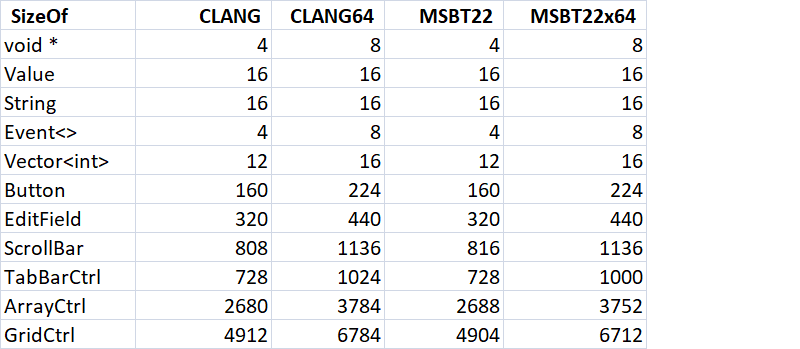

Test result
Now I have redone the test in Release mode, the result is not as eye-catching.
Event<> is of the same size as void *, this is better than I had expected. Of course actual memory used might be more than that: a thisfn with the sizeof of member function pointer and an object pointer for this will have difficulty to fit in the room for a void *.
Using 64 bit for context. I would think a ScrollBar is too big for the job it does. Ideally it should be done without containing 4 Buttons or Button should somehow be compacted to use significantly less room and leave some functions to derived class or optionally(pay per use) memory allocated from heap.
Anyway, the result is quite satisfying and reassuring.
BTW, test program:#include <CtrlLib/CtrlLib.h>
#include <GridCtrl/GridCtrl.h>
#include <TabBar/TabBar.h>
using namespace Upp;
#define SZ(t) "\n"#t"\t" << sizeof(t) /*<<"\t"<<alignof(t)*/
GUI_APP_MAIN
{
String s;
s << SZ(void *)
<< SZ(Value)
<< SZ(String)
<< SZ(Event<>)
<< SZ(Vector<int>)
<< SZ(Button)
<< SZ(EditField)
<< SZ(ScrollBar)
<< SZ(TabBarCtrl)
<< SZ(ArrayCtrl)
<< SZ(GridCtrl);
RLOG(s);
}
-
Attachment: a.png
(Size: 21.55KB, Downloaded 875 times)
[Updated on: Mon, 27 December 2021 20:42] Report message to a moderator |
|
|
|
| Re: Know what you're using. Size of some common types. [message #57903 is a reply to message #57902] |
Mon, 27 December 2021 19:58  |
 |
Klugier
Messages: 1117
Registered: September 2012
Location: Poland, Kraków
|
Senior Contributor |
|
|
Hello Lance,
Could you tell us more what is the root cause of your problems? Today, you created several threads about optimization. What is the reason of it? Do you want to write application on some embedded system?
In order to understand Button size problem it would be good to know the size of Ctrl (The class from which all controls inherits) and Pusher (Base class for Button). I am also analyzing ScrollBar code and it seems that for most themes we do not need prev2 and next2 buttons:
Button prev, prev2, next, next2;
I could imagine themes without buttons (like current KDE one). In this case keeping four buttons on stack seems like a waste. It should be replaced with something like std::optional<Button> (Upp::One):
One<Button> prev, prev2, next, next2;
Klugier
U++ - one framework to rule them all.
[Updated on: Mon, 27 December 2021 19:59] Report message to a moderator |
|
|
|
|
|
|
|
|
|
|
|
|
|
| Re: Know what you're using. Size of some common types. [message #57931 is a reply to message #57914] |
Tue, 28 December 2021 20:27 |
Lance
Messages: 656
Registered: March 2007
|
Contributor |
|
|
Novo:
By moving similarly algined items together (combined two seperated bitfield section, and move int8 item together with them)
int8 push;
int8 light;
bool horz:1;
bool jump:1;
bool track:1;
bool autohide:1;
bool autodisable:1;
bool is_active:1;
We can save like 16 bytes on 64 bit platform. If we try harder, like declaring linesize, etc as int8, we can save some more bytes. But these are all marginal.
What I have in mind is to get rid of the 4 Buttons completely. That way we can save around 1K in each ScrollBar object. ScrollBar is definitely a class that is worth rewritten. The rewriting work might even not be too difficult.
Here is a function from ScrollBar.cpp
int SkrollBar::GetMousePart()
{
int q = -1;
for(int i = 2; i >= 0; i--)
if(HasMouseIn(GetPartRect(i))) {
q = i;
break;
}
return q;
}
The slider area is divided into 3 parts, the upper blank area, the slider button, the bottom blank area. We can divide it into 5(or seven), with addition to accomodate prev,next (and even prev2, next2: anybody can ecudate me on what these two buttons are doing? I don't see it on the GUI at all)
These kind of refinement do not add functionalities but still contribute to a better U++ experience.
[Updated on: Tue, 28 December 2021 20:36] Report message to a moderator |
|
|
|
|
|
|
|
| Re: Know what you're using. Size of some common types. [message #57940 is a reply to message #57934] |
Thu, 30 December 2021 02:39 |
Lance
Messages: 656
Registered: March 2007
|
Contributor |
|
|
I manage to create a ScrollBar twin (SkrollBar) that should look and act exactly the same (to be safe, I leave untouched some old code that could benifit from rewritten with new facilities but I am not very sure yet).
Class Size
------- -----
Button 224
SkrollBar 232
ScrollBar 1136
TabBarCtrl 1000
ArrayCtrl 3752
GridCtrl 4904
See above table. SkrollBar is now almost same size of Button. Above size of GridCtrl is after both ScrollBar objects in it has been redefined as of type SkrollBar. Imagine howmany GridCtrl/ArrayCtrl you will be using in your program
The code is still very rough. I dare not to touch the original Slider() portion's Paint & mouse event (I wasn't able to understand it very well). I figure, push and light can be do without, linesize and minthumbsize will be more than enough with an int8. I haven't tries (removing light and push will require rewriting some code), chance is we can get SkollBar of the same size of Button.
Attached is a test that use ScrollBar/SkrollBar Vert()/Horz() side by side. They should look the same and behave the same. The Outer ones are SkrollBar. They respond to MouseMove in debug mode to report the section number that the mouse is currently in.
With a vertical SkrollBar, section 0 is the prev button, section 2 is the prev2 button (mostly invisble), section 3 is the portion of slider above the thumb, section 4 is the thumb, section 5 is the portion of slider under the thumb, section 5 is the next2 button (mostly invisible), section 6 is the next button.
[Updated on: Fri, 07 January 2022 19:10] Report message to a moderator |
|
|
|
|
|
| Re: Know what you're using. Size of some common types. [message #57945 is a reply to message #57944] |
Fri, 31 December 2021 20:20 |
Lance
Messages: 656
Registered: March 2007
|
Contributor |
|
|
In the spirit of previous discussion with Novo, the following minor change to CtrlCore/CtrlCore.h should decrease the sizeof(Ctrl) and that of all its derivative by 8 bytes on a 64-bit platform. While on 32-bit system there is no gain(Ctrl has been perfectly fine tuned for 32-bit platform), and there should be no penalties either.
Current code:
Top *top;
int exitcode;
Ctrl *prev, *next;
Ctrl *firstchild, *lastchild;//16
LogPos pos;//8
Rect16 rect;
Mitor<Frame> frame;//16
String info;//16
int16 caretx, carety, caretcx, caretcy;//8
byte overpaint;
Proposed change:
Top *top;
Ctrl *prev, *next;
Ctrl *firstchild, *lastchild;//16
LogPos pos;//8
Rect16 rect;
Mitor<Frame> frame;//16
String info;//16
int16 caretx, carety, caretcx, caretcy;//8
int exitcode; // move the line here
byte overpaint;
After the change, sizeof(Ctrl) is reduced from 152 bytes to 144 bytes on 64bit platform (both MSBT22x64 and CLANG64), while on 32bit platform, it remains unchanged with CLANG, but increases by 8 bytes with MSBT22. This increase is unexpected. If anybody can explain it or figure out a way to avoid it, it will be fully appreciated.
@mirek or @klugier, please consider apply the change after identifying and fixing the unexpected behavior with MSBT. The change is too simple to have potential danger and will affect all objects of Ctrl and its derivatives.
PS: By making use of MSC 32 bit flag _M_IX86, the above problem could be circumvented as follows:
...
Top *top;
#if defined(_M_IX86) // 32bit MSC compiler
int exitcode;
#endif
Ctrl *prev, *next;
Ctrl *firstchild, *lastchild;//16
LogPos pos;//8
Rect16 rect;
Mitor<Frame> frame;//16
String info;//16
int16 caretx, carety, caretcx, caretcy;//8
#if !defined(_M_IX86)
int exitcode;
#endif
byte overpaint;
bool unicode:1;
bool fullrefresh:1;
bool transparent:1;
bool visible:1;
bool enabled:1;
bool wantfocus:1;
bool initfocus:1;
bool activepopup:1;
bool editable:1;
bool modify:1;
bool ignoremouse:1;
...
-
Attachment: a.png
(Size: 11.67KB, Downloaded 746 times)
[Updated on: Fri, 31 December 2021 22:57] Report message to a moderator |
|
|
|
|
|
|
|
| Re: Know what you're using. Size of some common types. [message #57974 is a reply to message #57961] |
Fri, 07 January 2022 17:25 |
Lance
Messages: 656
Registered: March 2007
|
Contributor |
|
|
mirek:
Thanks. The output from above test program works better with Excel like utility so that record keeping and comparison are easier.
While there will not be a fixed ratio between total Ctrl used and that of ScrollBar used, I have test run some examples to get a feel of a rough ratio.
Examples/AddressBook(Up to the mainwindow is open): Max Ctrl Used: 96, Max ScrollBar used: 11 (9:1)
Examples/HomeBudget(Up to the mainwindow is open): Max Ctrl Used: 277, Max ScrollBar used: 22 (13:1)
Reference/GridCtrlTest(Up to the maindown is open): Max Ctrl Used: 1011, Max ScrollBar used: 132 (8:1)
UppSrc/ide(open a blank CtrlLib application): Max Ctrl Used: 802, Max ScrollBar used: 217 (4:1);
Again ide, but this time open UppSrc/ide, and in it, click the very last file ide.lay: Max Ctrl Used: 22001, Max ScrollBar used: 2181 (10: 1)
Considering the absolute and percentage saving we derived from the new implementation of ScrollBar (well, only an insignificant part of it to be more precise), accepting new ScrollBar would be as beneficial as compacting Ctrl, if not more: mirek mentioned in another discussion that he could replace a String with a const char *, resulting in additional saving of 8 bytes on 64 bit platforms and 12 bytes on 32 bit ones. Combining with that derived from rearranging member variables to minimize padding, we end up with 16 bytes each on both 32 and 64 bit platforms. That's about it if we don't want to lose any functionalities.
ScrollBar is pretty isolated: I don't think many people will need to derive from it. As long as we maintain the user interface stable/untouched, and test it on different platforms/settings, it should pose very low risk of messing up things (to replace it). These are all gain at no cost: by the way, new ScrollBar results in smaller executable too. Now my question is: Why not?
----
PS: Even if you derive from ScrollBar, I don't think you will be affected: the functions/member variables changed are all private (as far as I can remember).
[Updated on: Fri, 07 January 2022 18:41] Report message to a moderator |
|
|
|
| Re: Know what you're using. Size of some common types. [message #57975 is a reply to message #57974] |
Fri, 07 January 2022 17:44 |
Lance
Messages: 656
Registered: March 2007
|
Contributor |
|
|
Assuming the proposed data reorganization for Ctrl and Pusher & Button are both applied, sizeof(Button) will be reduced 16 bytes from 224 to 208 (on 64bit platforms). By ridding of the 4 contained Buttons, each ScrollBar object will be using 4x204=832 less bytes.
Use second case of uppsrc/ide on 64 bit platform for example, compacting Ctrl to save 8 bytes each will have a total memory saving of 22001x8=176,008 bytes. The new ScrollBar implementation will have an incremental memory saving of 2181x832=1,814,592 bytes.
I am not saying 2M or even 10M of memory saving will make much a difference in now-a-days hardware, but reducing sizeof(ScrollBar) to 1/5 of what it is (actually even less) might not be less important than reducing sizeof(Ctrl) by 8 - 24 bytes from practical persperctive.
[Updated on: Fri, 07 January 2022 18:18] Report message to a moderator |
|
|
|
| Re: Know what you're using. Size of some common types. [message #57976 is a reply to message #57974] |
Fri, 07 January 2022 18:32 |
 |
mirek
Messages: 14290
Registered: November 2005
|
Ultimate Member |
|
|
Well, I do not want to dive into this now - we need to release soon to stabilise huge changes done and there is a lot of more important things to fix.
Anyway, after that, this is quite important and moreover fun.
The situation with ScrollBar buttons repeats itself in other places, e.g. with SpinButtons. I am thinking there could be some nice generic solution, something like "Buttons" partly abstract class that would represent "embedded buttons" using just virtual methods of derived class (similar fashion to your ScrollBar implementation, but in generic way). EditIntWithSpin is quite big sizeof as well and it is even more important (as it is has higher chance to be used in huge quantities).
But that all is pennies compared to DropList sizeof. That one needs converting PopUpTable list; to One<PopUpTable> list; and only create when needed and then delete. Unfortunately, it is delicate work, a lot of things there could go wrong.
Another things I would like to see reduced is String Ctrl::info. const char * would work there with some effort. 8 bytes saved  (Maybe add some flag that it points to Layout ID only, then it could point to character literal in layout widget, even more savings).
|
|
|
|
| Re: Know what you're using. Size of some common types. [message #57977 is a reply to message #57975] |
Fri, 07 January 2022 18:34 |
|
mirek
Messages: 14290
Registered: November 2005
|
Ultimate Member |
|
|
Lance wrote on Fri, 07 January 2022 17:44Assuming the proposed data reorganization for Ctrl and Pusher & Button are both applied, sizeof(Button) will be reduced 16 bytes from 224 to 208 (on 64bit platforms). By ridding of the 4 contained Buttons, each ScrollBar object will be using 4x204=832 less bytes.
Use second case of uppsrc/ide on 64 bit platform for example, compacting Ctrl to save 8 bytes each will have a total memory saving of 22001x8=176,008 bytes. The new ScrollBar implementation will have an incremental memory saving of 2181x832=1,814,592 bytes.
I am not saying 2M or even 10M of memory saving will make much a difference in now-a-days hardware, but reducing sizeof(ScrollBar) to 1/5 of what it is (actually even less) might not be less important than reducing sizeof(Ctrl) by 8 - 24 bytes from practical persperctive.
Frankly, I am not that concerned about saving memory in such normal situations.
However, I have seen/used ArrayCtrls with thousands of embedded DropLists. There it could be huge....
|
|
|
|
|
|
|
|
|
|
| Re: Know what you're using. Size of some common types. [message #57986 is a reply to message #57981] |
Sun, 09 January 2022 20:36 |
Lance
Messages: 656
Registered: March 2007
|
Contributor |
|
|
If the intended modified Button will continue to be a Ctrl derivative so that it works seamlessly with existing code, the minimum size it will have is sizeof(Ctrl). In this particular situation, the Ctrl member variable LogPos(and maybe more candidates) can be done without, we can reuse it to put a Style * st; and probably WhenPush event variable somewhere else. In any case, the minimum size will be sizeof(Ctrl). The savings won't be quite as good (significantly less than the case when buttons or even frames are ridden of), even though it indeed involves least work and least chance of surprise.
Another way is to define it something like
class FakeButton
{
public:
void Paint(Draw& w, Rect& where, Button::Style& style, int state/*normal,hot,pressed,disabled*/);
Event<> WhenPush;
};
This way sizeof(FakeButton)==sizeof(Event<>)(==sizeof(void*) ), but the effort involved in revising containing Ctrl (ScrollBar, EditWithSpin, DropList, etc)'s Paint,LeftDown,LeftRepeat, etc, will be quite similar to hardcoding each of the Ctrl's method that we need to change to allow the savings to take place.
[Updated on: Sun, 09 January 2022 20:43] Report message to a moderator |
|
|
|
| Re: Know what you're using. Size of some common types. [message #57987 is a reply to message #57986] |
Mon, 10 January 2022 01:07 |
|
mirek
Messages: 14290
Registered: November 2005
|
Ultimate Member |
|
|
Lance wrote on Sun, 09 January 2022 20:36If the intended modified Button will continue to be a Ctrl derivative so that it works seamlessly with existing code, the minimum size it will have is sizeof(Ctrl). In this particular situation, the Ctrl member variable LogPos(and maybe more candidates) can be done without, we can reuse it to put a Style * st; and probably WhenPush event variable somewhere else. In any case, the minimum size will be sizeof(Ctrl). The savings won't be quite as good (significantly less than the case when buttons or even frames are ridden of), even though it indeed involves least work and least chance of surprise.
Another way is to define it something like
class FakeButton
{
public:
void Paint(Draw& w, Rect& where, Button::Style& style, int state/*normal,hot,pressed,disabled*/);
Event<> WhenPush;
};
This way sizeof(FakeButton)==sizeof(Event<>)(==sizeof(void*) ), but the effort involved in revising containing Ctrl (ScrollBar, EditWithSpin, DropList, etc)'s Paint,LeftDown,LeftRepeat, etc, will be quite similar to hardcoding each of the Ctrl's method that we need to change to allow the savings to take place.
This would be too long. What we need is class Buttons like this:
class Buttons : Ctrl {
virtual int GetButtonCount() = 0;
virtual Rect GetButtonRectint i) = 0;
virtual int ButtonMouseDown(Point p);
virtual int ButtonMouseUp(Point p);
virtual int ButtonMouseMove(Point p);
}
|
|
|
|
| Re: Know what you're using. Size of some common types. [message #57988 is a reply to message #57987] |
Mon, 10 January 2022 02:00 |
Lance
Messages: 656
Registered: March 2007
|
Contributor |
|
|
Great. For WithSpin<> which in turn contains SpinButtons, this can roughly reduce the object size by 2*sizeof(Button) - sizeof(Ctrl). That's a great achievement with minimal impact on existing code. It will just work.(Well, SpinButtons exposed Button inc, dec; but it should not be referenced much except in the library implementation anyways).
And it's a generic solution. No matter how many buttons it fakes, it will take up room of only sizeof(Ctrl).
For WithSpin in particular, another route I was considering (I am not versed with Upp enough to know whether it will work) is to start from EditField. Basically add 2 bitfield bool
class EditField:....
{
....
public:
void Paint(Draw& d)override{
PaintSpinButtons();
DoOriginalEditFieldPaintOnReducedSize();
}
void LeftDown(Point p, dword f)override{
if(p not in SpinPart)
Parent::LeftDown(p,f);
else if(p in UpperPart of Spin)
WhenSpin(false);
else// (p in LowerPart of Spin)
WhenSpin(true);
}
void LeftRepeat(Point p, dword f)override{
LeftDown(p,f);
}
Image CursorImage(Point p, dword)override{
// Image according to part of the Ctrl
}
//... maybe more to be override'd or rewrite to take care of Fake SpinButton part.
Event<bool> WhenSpin;
private:
bool with_spin : 1;
bool spin_visible : 1;
Size GetReducedSize(){
Size sz=GetSize();
if(with_spin && spin_visible)
reduce_size_to_leave_room_for_spin_buttons(sz);
}
}
Then in actual types(EditIntWithSpin, EditInt64WithSpin, etc) that needs SpinButtons, we just turn the flags on in respective constructors, and connect to WhenSpin event.
I am not sure if we claim part of EditField as Frame without actully AddFrame, etc, will work as wished.
If you figure this route is worth considering, I can do a preliminary implementation. Otherwise (if you prefer the more normal Buttons route), I will wait and see.
[Updated on: Mon, 10 January 2022 02:29] Report message to a moderator |
|
|
|
| Re: Know what you're using. Size of some common types. [message #57991 is a reply to message #57988] |
Mon, 10 January 2022 21:43 |
Lance
Messages: 656
Registered: March 2007
|
Contributor |
|
|
Buttons established a concept. If implemented with due care, it will arrive at same Ctrl size (eg, ScrollBar, SpinButtons) as when hardcoded (like the way I do ScrollBar). That being said, Buttons interface are not expected to save much work (than hard coded way), if any. Personally I will do without: I don't see the benefit here, except the visual clue that they are doing similar things.
I have performed a simple test on adding SpinButtons to EditField without resorting to a CtrlFrame, and it works like a charm. I know this is not conceptually right, but it will work in practice and save memory of a little over sizeof(Ctrl) for each EditWithSpin object than the Buttons way mirek is considering. The only functionality it lose is when there are multiple frames, you cannot choose to put the SpinButtons frame on anywhere except innermost, because it's not a real CtrlFrame.
The Test is very simple, start a CtrlLib project with a Main Window with a EditField and a EditInt64WithSpin. Now we start to play around with CtrlLib.
In <CtrlLib/EditCtrl.h, add a new virtual function to class EditField
class EditField : public Ctrl, private TextArrayOps {
public:
virtual void Layout();
virtual void Paint(Draw& draw);
virtual void LeftDown(Point p, dword keyflags);
... omitted
virtual void State(int);
// newly introduced
virtual Size GetReducedSize()const{
// EditField::GetReducedSize() should just return GetSize();
// it's the WithSpin derived class that should override this
// function to reserve room for SpinButtons.
//
// here we reduce it as if allocating space for SpinButtons
Size sz = GetSize();
sz.cx -= 30;
if(sz.cx < 0)
sz.cx=0;
return sz;
}[/b]
...
In <CtrlLib/EditField.cpp>, search all occurence of "GetSize()", if it's not "GetSize().cy", and is not "GetParent()->GetSize()", repace it with "GetReducedSize()". Run the test program, notice the room for SpinButton has been allocated, and play with some input in the EditField, see it scroll horizontally properly when the text gets really long. Now we can be certain this route is feasible. And it will come out with more compact EditXXWithSpins than to retain Buttons in a CtrlFrame. I would say the amount of coding involved are quite similar in both ways.
I will otherwise leave EditField (except probably add a spin_visible bitfield member intended for EditXXwithSpin). Then override Paint, relevant mouse event virtual function in WithSpin<> template class. It's quite similar to what I did with ScrollBar. No impact will be felt by libary users except smaller EditXXWithSpin objects---class hierarchy and interfaces remain unchanged.
[Updated on: Mon, 10 January 2022 21:54] Report message to a moderator |
|
|
|
|
|
|
|
| Re: Know what you're using. Size of some common types. [message #57994 is a reply to message #57993] |
Tue, 11 January 2022 15:19 |
Lance
Messages: 656
Registered: March 2007
|
Contributor |
|
|
I see. You will provide underlying facilities to support the Buttons interface so that by implementing the interface, underlying CtrlLib or CtrlCore facilities will draw it correctly and deliver mouse event etc as if each button is a actual Ctrl.
For WithSpin<>.OnSides, the painting can be taken care of by Draw.Offset. Not sure if there will be more complications.
[Updated on: Tue, 11 January 2022 17:47] Report message to a moderator |
|
|
|
| Re: Know what you're using. Size of some common types. [message #57995 is a reply to message #57994] |
Tue, 11 January 2022 17:40 |
Lance
Messages: 656
Registered: March 2007
|
Contributor |
|
|
This idea might worth further generalization:
For example, we have an ArrayCtrl who is housing thousands of child Ctrl: edits, buttons, etc. Technicallu, each child don't need to worry about its location and size which will be set to whatever the ArrayCtrl decides. I am sure there will be a lot more states a resident child doesn't need to worry about, similar to the Buttons case, but more generic: each child is determined by a row and a column, unlike in Buttons case we only need an index to identify a fake Ctrl. As these interface may be required by both ArrayCtrl and GridCtrl, ideally the support can be built into Ctrl base class. And Edits, Button, etc need to provide a fake version (not derived from Ctrl, while the real version ,like
what they are, is just fake controls contained in Ctrl which they also derive from.
[Updated on: Tue, 11 January 2022 17:44] Report message to a moderator |
|
|
|
| Re: Know what you're using. Size of some common types. [message #57996 is a reply to message #57995] |
Tue, 11 January 2022 22:07 |
Lance
Messages: 656
Registered: March 2007
|
Contributor |
|
|
If ArrayCtrl limits children to Fake Ctrls only, SyncLineCtrls etc will be dispensible.
Back to Buttons, some chain of thoughts. Instead of inheriting from Ctrl, it should be leave as an interface (no data members); concrete Ctrls will decide whether to inherit from Ctrl, ArrayCtrl, EditField or other Ctrl derivatives and implementing the interface to use the Ctrl's Paint & other virtual functions to fake out Buttons.
This will add a cost of sizeof(void *) (pointer to interface vtbl) to each object of Classes that implement the interface. Why not add the interface (a set of virtual functions) to Ctrl directly to save this vtble pointer?
class Ctrl : public ...
{
public:
virtual void Paint(Draw& w)
{
for(int i = 0; i < GetFakeCtrlsCount(); ++i)
{
Rect r=GetFakeCtrlsRect(i);
w.Clipoff(r);
PaintFakeCtrls(w, i);
w.End();
}
}
virtual void LeftDown(Point p, dword flag)
{
for(int i = 0; i < GetFakeCtrlsCount(); ++i)
{
Rect r=GetFakeCtrlsRect(i);
if( MouseInRect(r) )
{
p.x -= r.left; p.y -= r.top;
FakeCtrlsLeftDown(p, flag, i);
break;
}
}
}
...
// added to support fake Ctrls
virtual int GetFakeCtrlsCount()const{ return 0; }
virtual void PaintFakeCtrls(Draw& w, int index){}
virtual void FakeCtrlsLeftDown(Point p, dword flag, int index){}
... and some more virtual function of Ctrl with an extra parameter index.
};
This way we don't explicitly limit the type of fake Ctrls (Not even by a non-restrictive but suggestive name "Buttons"). It's totally up to each derivative that actually implements the interface to decide what Ctrls it wants to fake.
------------
PS: instead of repeatedly calling multiple virtual functions to Paint each fake Ctrl, it make sense to instead
class Ctrl: ...
{
public:
...
virtual void PaintFakeCtrls(Draw& w);
...
Then the PaintFakeCtrls() will be quite like ScollBar::Paint(). I don't know, let's see how you do it clearly and efficiently.
[Updated on: Tue, 11 January 2022 22:46] Report message to a moderator |
|
|
|
| Re: Know what you're using. Size of some common types. [message #57997 is a reply to message #57996] |
Tue, 11 January 2022 22:25 |
Lance
Messages: 656
Registered: March 2007
|
Contributor |
|
|
The cost is the size of the vtable of Ctrl and each of its derivatives almost doubles. With the number of classes in the hierarchy, this could be quite big to ignore. Then we get something like suggested by you
class CtrlWithFakeCtrls : public Ctrl
{
...
}
Only Ctrls derived from the class are able to make use of the facility. If any existing Ctrl is believed to be able to benefit from it, we just change its base class.
Now I get your point. It's nice.
[Updated on: Tue, 11 January 2022 22:32] Report message to a moderator |
|
|
|
|
|
| Re: Know what you're using. Size of some common types. [message #58375 is a reply to message #58374] |
Thu, 12 May 2022 08:26 |
Novo
Messages: 1431
Registered: December 2006
|
Ultimate Contributor |
|
|
FYI.
I've attached three tab-separated tables having a header below:
Type, Name, TypeIndex, Nested, Size, Padding, Padding/Size
This info is for TheIDE, Release, Windows. It is retrieved from debug info (this can be done in Windows and Unix)
Sorted by Size:
struct Upp::MemoryProfile 11203 0 278616 20 0.0000717834
struct Upp::MemoryProfile 99836 0 278616 20 0.0000717834
struct Ide 10 0 232488 108 0.0004645401
struct Ide 43920 0 232488 108 0.0004645401
class BuildMethods 71641 0 174176 0 0
class BuildMethods 825 0 174176 0 0
struct ZSTD_DCtx_s 118100 0 160312 18 0.0001122811
struct ZSTD_DCtx_s 1331 0 160312 18 0.0001122811
struct Upp::HeaderFooterDlg 5573 0 141680 0 0
class Upp::PatchDiff 102483 0 135664 4 0.0000294846
class Upp::PatchDiff 6438 0 135664 4 0.0000294846
class Upp::PatchDiff 6440 0 135664 4 0.0000294846
class Upp::PatchDiff 65233 0 135664 4 0.0000294846
class Upp::GIFRaster::Data 123850 1 133624 14 0.0001047716
class Upp::GIFRaster::Data 2175 1 133624 14 0.0001047716
class Data 123927 1 133624 14 0.0001047716
class Data 123927 1 133624 14 0.0001047716
class Upp::GIFEncoder::Data 6934 1 131432 0 0
class Data 124015 1 131432 0 0
class Upp::GIFEncoder::Data 124084 1 131432 0 0
struct Upp::sPalMaker 128970 0 131076 0 0
struct Upp::sPalMaker 109 0 131076 0 0
struct CLzmaEnc 1268 0 123272 8 0.0000648971
struct CLzmaEnc 117784 0 123272 8 0.0000648971
struct Pool 87626 1 114888 11 0.0000957454
struct Pool 87626 1 114888 11 0.0000957454
struct Upp::CoWork::Pool 11093 1 114888 11 0.0000957454
class DefaultBuilderSetup 463 0 109368 0 0
class Upp::StyleManager 5023 0 104200 4 0.0000383877
class Upp::StyleManager 119901 0 104200 4 0.0000383877
class TopicEditor 2965 0 85088 7 0.0000822678
class TopicEditor 74943 0 85088 7 0.0000822678
class Upp::DirDiffDlg 102374 0 81664 0 0
class Upp::DirDiffDlg 548 0 81664 0 0
class Upp::DirDiffDlg 45948 0 81664 0 0
class Upp::DirDiffDlg 546 0 81664 0 0
struct Upp::ParaFormatDlg 9045 0 80640 0 0
class Upp::ParaFormatting 1638 0 79848 14 0.0001753331
class Upp::ParaFormatting 119816 0 79848 14 0.0001753331
struct QtfDlgEditor 6998 0 70416 0 0
struct IdeQtfDes 2039 0 70096 0 0
struct IdeQtfDes 103543 0 70096 0 0
class Upp::RichEditWithToolBar 6608 0 70072 7 0.0000998972
class Upp::RichEditWithToolBar 6606 0 70072 7 0.0000998972
struct Upp::RichEditHdrFtr 11338 0 70064 0 0
class Upp::RichEdit 7027 0 69464 41 0.0005902338
class Upp::RichEdit 7025 0 69464 41 0.0005902338
class Upp::RichEdit 7029 0 69464 41 0.0005902338
class Upp::RichEdit 120597 0 69464 41 0.0005902338
class Upp::RichEdit 68731 0 69464 41 0.0005902338
struct Upp::WordDistanceTester 109746 0 67076 0 0
struct Upp::WordDistanceTester 6526 0 67076 0 0
struct DState 7923 0 64144 9 0.0001403093
struct FormatDlg 10024 0 64136 0 0
struct OutMode 2169 0 62928 0 0
struct WithSetupFontLayout<Upp::ParentCtrl> 1817 0 58800 160 0.0027210884
struct EState 7925 0 55768 8 0.0001434514
class Gdb 81257 0 51688 28 0.0005417118
class Gdb 35 0 51688 28 0.0005417118
struct Pdb 73 0 48864 42 0.0008595285
struct Pdb 82340 0 48864 42 0.0008595285
struct AssistEditor 2647 0 48184 29 0.0006018595
Sorted by Padding:
class Upp::CodeEditor 92617 0 19104 3468 0.1815326633
class Upp::CodeEditor 973 0 19104 3468 0.1815326633
class Upp::CodeEditor 975 0 19104 3468 0.1815326633
class Upp::CodeEditor 39471 0 19104 3468 0.1815326633
class Upp::ImagePainter 8169 0 1128 1072 0.9503546099
struct Upp::WithPaletteLayout<Upp::TopWindow> 8787 0 9648 344 0.035655058
struct WithTemplateListLayout<Upp::TopWindow> 1602 0 4576 344 0.0751748252
struct WithSimpleListLayout<Upp::TopWindow> 10165 0 4576 344 0.0751748252
struct Upp::WithMacroManagerLayout<Upp::TopWindow> 3045 0 1704 344 0.2018779343
struct WithUrepoConsoleLayout<Upp::TopWindow> 7591 0 4576 344 0.0751748252
struct WithExportTrLayout<Upp::TopWindow> 4231 0 15768 344 0.0218163369
struct Upp::WithPaletteSelectorLayout<Upp::TopWindow> 10028 0 944 344 0.3644067797
struct WithInsertAsLayout<Upp::TopWindow> 8805 0 1312 344 0.262195122
struct WithCustomLayout<Upp::TopWindow> 9241 0 5392 344 0.0637982196
struct WithMoveTopicLayout<Upp::TopWindow> 3205 0 20552 344 0.0167380304
struct WithSetupWebSearchEngineLayout<Upp::TopWindow> 6467 0 2592 344 0.1327160494
struct Upp::WithImageSizeLayout<Upp::TopWindow> 11622 0 3288 344 0.104622871
struct WithRenamePackageLayout<Upp::TopWindow> 7263 0 1840 344 0.1869565217
struct WithConfLayout<Upp::TopWindow> 3688 0 5792 344 0.0593922652
struct Upp::WithHexGotoLayout<Upp::TopWindow> 6162 0 6008 344 0.0572569907
struct WithSaveTemplateLayout<Upp::TopWindow> 6802 0 15472 344 0.0222337125
struct Upp::WithSimpleSelectLayout<Upp::TopWindow> 7940 0 4576 344 0.0751748252
struct WithCredentialLayout<Upp::TopWindow> 2412 0 8040 344 0.0427860697
struct Upp::WithImageLayout<Upp::TopWindow> 7100 0 5432 344 0.0633284242
struct Upp::WithFileSelectorLayout<Upp::TopWindow> 10310 0 18168 344 0.0189343901
struct WithNewPackageLayout<Upp::TopWindow> 9953 0 11152 344 0.0308464849
struct Upp::WithEditIntLayout<Upp::TopWindow> 4129 0 1560 344 0.2205128205
struct WithLangLayout<Upp::TopWindow> 9111 0 16384 344 0.0209960938
struct WithBaseSetupLayout<Upp::TopWindow> 9523 0 4472 344 0.0769230769
struct Upp::WithCellPropertiesLayout<Upp::TopWindow> 3301 0 16312 344 0.021088769
struct WithGotoMemoryLayout<Upp::TopWindow> 10812 0 6776 344 0.0507674144
struct WithQuickwatchLayout<Upp::TopWindow> 1587 0 9144 344 0.0376202975
struct WithMatrixLayout<Upp::TopWindow> 9943 0 5784 344 0.0594744122
struct WithAddLangLayout<Upp::TopWindow> 2193 0 9936 344 0.0346215781
struct WithTppLayout<Upp::TopWindow> 11550 0 5624 344 0.0611664296
struct WithFindInFilesLayout<Upp::TopWindow> 568 0 33064 344 0.0104040648
struct WithCharsetLayout<Upp::TopWindow> 7572 0 5576 344 0.0616929699
struct Upp::WithRescaleLayout<Upp::TopWindow> 1186 0 7048 344 0.0488081725
struct Upp::WithUnitLayout<Upp::TopWindow> 8941 0 7784 344 0.0441932169
struct WithPasskeyLayout<Upp::TopWindow> 2155 0 2304 344 0.1493055556
struct Upp::WithSplitCellLayout<Upp::TopWindow> 9882 0 3288 344 0.104622871
struct WithMoveCopyPackageLayout<Upp::TopWindow> 5037 0 6984 344 0.049255441
struct WithPrintLayout<Upp::TopWindow> 8193 0 2552 344 0.1347962382
struct WithGetPasskeyLayout<Upp::TopWindow> 7321 0 1552 344 0.2216494845
struct WithAutoSetupLayout<Upp::TopWindow> 4127 0 1768 344 0.1945701357
struct Upp::WithRichFindReplaceLayout<Upp::TopWindow> 8541 0 11912 344 0.0288784419
struct WithNestEditorLayout<Upp::TopWindow> 10780 0 5696 344 0.0603932584
struct WithRunLayout<Upp::TopWindow> 6662 0 15368 344 0.0223841749
struct WithLicenseLayout<Upp::TopWindow> 8869 0 3016 344 0.1140583554
struct WithNewTopicLayout<Upp::TopWindow> 4786 0 15472 344 0.0222337125
struct WithVisGenLayout<Upp::TopWindow> 6277 0 26104 344 0.013178057
struct WithSelectPackageLayout<Upp::TopWindow> 10725 0 11288 344 0.0304748405
struct WithAbbreviationsLayout<Upp::TopWindow> 6285 0 24648 344 0.0139565076
struct Upp::WithObjectSizeLayout<Upp::TopWindow> 206 0 7240 344 0.0475138122
struct Upp::WithFileSelectorLayout<Upp::TopWindow> 10308 0 18168 344 0.0189343901
struct WithSetupGITLayout<Upp::TopWindow> 3425 0 3280 344 0.1048780488
struct Upp::WithIDEFindReplaceLayout<Upp::TopWindow> 10873 0 14192 344 0.0242390079
Sorted by Padding/Size:
class Upp::ImagePainter 8169 0 1128 1072 0.9503546099
struct _DEBUG_EVENT 3331 0 176 160 0.9090909091
struct COFF_IMAGE_SYMBOL 3051 0 26 16 0.6153846154
struct COFF_IMAGE_SYMBOL 139682 0 26 16 0.6153846154
struct jpeg_error_mgr 260 0 168 88 0.5238095238
class Upp::CallbackN<int,bool &> 1397 0 16 8 0.5
class Upp::CallbackN<int,int> 56432 0 16 8 0.5
class Upp::CallbackN<Upp::Stream &> 9252 0 16 8 0.5
class Upp::CallbackN<int,int> 5209 0 16 8 0.5
class Upp::CallbackN<const int &> 119721 0 16 8 0.5
class Upp::CallbackN<const Upp::String &,Upp::Vector<Upp::LineEdit::Highlight> &,const Upp::WString &> 5426 0 16 8 0.5
class Upp::CallbackN<bool,const Upp::String &,Upp::Image &> 75509 0 16 8 0.5
struct ValueType 55349 1 16 8 0.5
class Upp::CallbackN<const Upp::String &,Upp::Vector<Upp::LineEdit::Highlight> &,const Upp::WString &> 66671 0 16 8 0.5
class Upp::GateN<> 10086 0 16 8 0.5
class Upp::GateN<int,int> 2708 0 16 8 0.5
class Upp::GateN<Upp::CodeEditor::MouseTip &> 66796 0 16 8 0.5
class Upp::CallbackN<Upp::Bar &> 1485 0 16 8 0.5
class Upp::CallbackN<Upp::String &> 66756 0 16 8 0.5
class Upp::CallbackN<Upp::String> 64253 0 16 8 0.5
struct ValueType 55349 1 16 8 0.5
class Upp::CallbackN<bool,const Upp::String &,Upp::Image &> 1154 0 16 8 0.5
class Upp::CallbackN<Upp::Time &> 95128 0 16 8 0.5
class Upp::CallbackN<Upp::String &,Upp::WString &> 8703 0 16 8 0.5
class Upp::CallbackN<int,Upp::PasteClip &> 37998 0 16 8 0.5
class Upp::GateN<Upp::CodeEditor::MouseTip &> 2995 0 16 8 0.5
struct Upp::RichTxt::Part 55362 1 16 8 0.5
struct value_type 55350 1 16 8 0.5
class Upp::GateN<> 113352 0 16 8 0.5
class Upp::CallbackN<const Upp::String &,const Upp::String &> 99218 0 16 8 0.5
class Upp::CallbackN<Upp::Point_<int> > 37972 0 16 8 0.5
class Upp::CallbackN<long long> 10110 0 16 8 0.5
class Upp::GateN<int,int> 94204 0 16 8 0.5
class Upp::CallbackN<Upp::Bar &> 24631 0 16 8 0.5
class Upp::CallbackN<int> 5035 0 16 8 0.5
class Upp::CallbackN<long long> 66825 0 16 8 0.5
class Upp::CallbackN<int,Upp::PasteClip &> 4225 0 16 8 0.5
class Upp::CallbackN<int,const Upp::String &> 91852 0 16 8 0.5
class Upp::CallbackN<int,const Upp::String &> 2099 0 16 8 0.5
struct Upp::RichTxt::Part 2071 1 16 8 0.5
class Upp::CallbackN<Upp::One<Upp::Ctrl> &> 26383 0 16 8 0.5
class Upp::CallbackN<Upp::PasteClip &> 8017 0 16 8 0.5
struct value_type 138946 1 16 8 0.5
class Upp::CallbackN<Upp::EscEscape &> 250 0 16 8 0.5
class Upp::CallbackN<Upp::Point_<int> > 1598 0 16 8 0.5
struct Part 51523 1 16 8 0.5
class Upp::CallbackN<const char *> 472 0 16 8 0.5
class Upp::CallbackN<const char *> 58355 0 16 8 0.5
class Upp::CallbackN<Upp::EscEscape &> 66862 0 16 8 0.5
class Upp::CallbackN<int> 52370 0 16 8 0.5
class Upp::GateN<long long,long long> 3299 0 16 8 0.5
class Upp::GateN<long long,long long> 64649 0 16 8 0.5
class Upp::CallbackN<const Upp::String &> 66709 0 16 8 0.5
class Upp::CallbackN<const int &> 5404 0 16 8 0.5
class Upp::CallbackN<Upp::Stream &> 31135 0 16 8 0.5
class Upp::CallbackN<Upp::Time &> 6708 0 16 8 0.5
struct value_type 55350 1 16 8 0.5
struct asn1_type_st 478 0 16 8 0.5
class Upp::CallbackN<Upp::String &> 10703 0 16 8 0.5
class Upp::CallbackN<> 24613 0 16 8 0.5
class Upp::CallbackN<Upp::One<Upp::EditorSyntax> &> 92123 0 16 8 0.5
struct value_type 138946 1 16 8 0.5
class Upp::CallbackN<> 7716 0 16 8 0.5
class Upp::CallbackN<Upp::One<Upp::EditorSyntax> &> 11314 0 16 8 0.5
class Upp::CallbackN<int,bool &> 61655 0 16 8 0.5
class Upp::CallbackN<Upp::PasteClip &> 86672 0 16 8 0.5
class Upp::CallbackN<const Upp::String &,const Upp::String &> 5211 0 16 8 0.5
class Upp::CallbackN<const void *,int> 100988 0 16 8 0.5
struct Part 51523 1 16 8 0.5
class Upp::CallbackN<Upp::String> 3828 0 16 8 0.5
class Upp::CallbackN<const Upp::String &> 11143 0 16 8 0.5
class Upp::CallbackN<Upp::One<Upp::Ctrl> &> 2277 0 16 8 0.5
class Upp::CallbackN<Upp::String &,Upp::WString &> 88967 0 16 8 0.5
class Upp::CallbackN<const void *,int> 4958 0 16 8 0.5
struct AppPreview::Line 2523 1 32 15 0.46875
struct Line 31709 1 32 15 0.46875
struct ValueType 32269 1 32 15 0.46875
struct AppPreview::Line 32282 1 32 15 0.46875
struct ValueType 32269 1 32 15 0.46875
struct value_type 32270 1 32 15 0.46875
struct value_type 32270 1 32 15 0.46875
struct Upp::Iml::IImage 17989 1 16 7 0.4375
struct ValueType 18704 1 16 7 0.4375
struct Upp::sThreadParam 5869 0 16 7 0.4375
struct Upp::Iml::IImage 11268 1 16 7 0.4375
struct ValueType 18589 1 16 7 0.4375
class Upp::WaitCursor 5752 0 16 7 0.4375
struct value_type 18705 1 16 7 0.4375
struct Upp::H_l_ 9555 0 16 7 0.4375
struct value_type 17978 1 16 7 0.4375
class Pdb::CopyMenu::<lambda24> 86333 0 16 7 0.4375
class Pdb::CopyMenu::<lambda25> 86334 0 16 7 0.4375
struct value_type 17978 1 16 7 0.4375
struct Upp::TupleN<2,unsigned char,const char *> 606 0 16 7 0.4375
struct Upp::TupleN<2,unsigned char,const char *> 109882 0 16 7 0.4375
struct IImage 17819 1 16 7 0.4375
struct ValueType 18704 1 16 7 0.4375
class Pdb::CopyMenu::<lambda24> 86117 0 16 7 0.4375
struct ValueType 18589 1 16 7 0.4375
struct IImage 17819 1 16 7 0.4375
class Upp::DirDiffDlg::DirDiffDlg::<lambda0>::operator()::<lambda1> 102429 0 16 7 0.4375
struct value_type 18705 1 16 7 0.4375
class Upp::DirDiffDlg::DirDiffDlg::<lambda0>::operator()::<lambda1> 102522 0 16 7 0.4375
class Pdb::CopyMenu::<lambda25> 86125 0 16 7 0.4375
Regards,
Novo
|
|
|
|
|
|
Goto Forum:
Current Time: Tue Apr 28 14:59:06 GMT+2 2026
Total time taken to generate the page: 0.01225 seconds
|
U++ framework
Search
Help
Members
Register
Login
Home
