When clicking left mouse we will get the context menu. If we are in DEBUG mode or if ShowPropertiesDlg() is set to true, we will have the Properties option that will open the Properties dialog.
Properties dialog contains the next tabs:
All data changed in dialog will be changed as well in ScatterCtrl immediately.

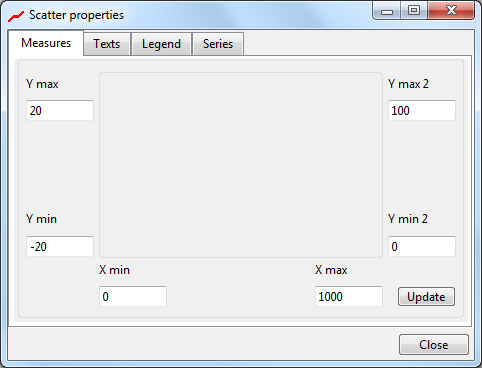

Measures shows general ScatterDraw dimensions.

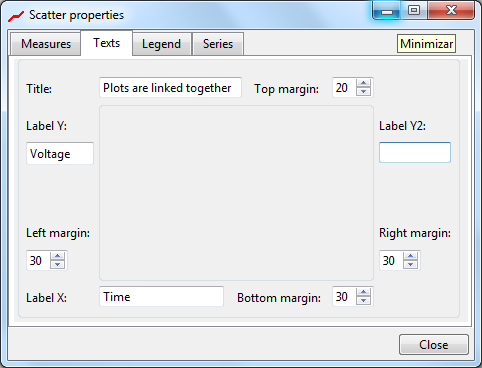

Texts sets legend texts and some margins.

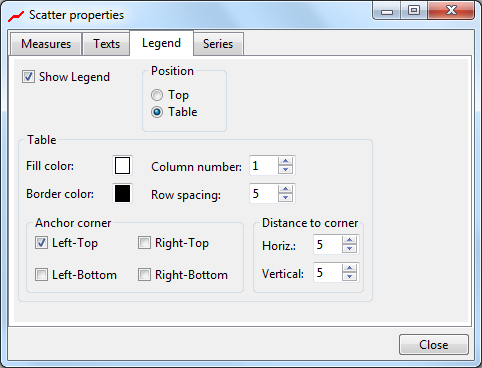

Legend sets the location and characteristics of legend table.

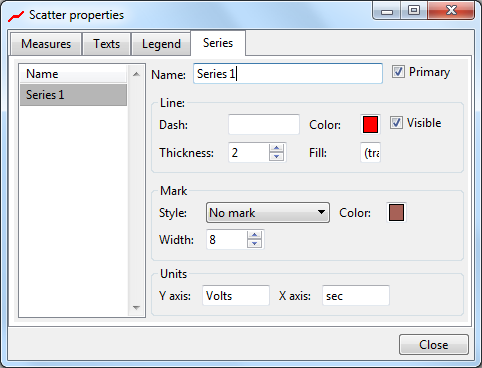

Series shows the characteristics of plotted series.

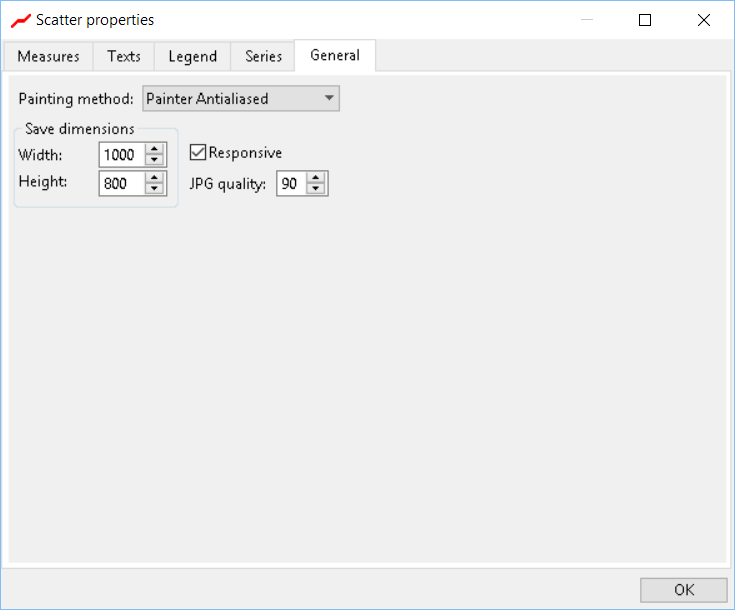

General includes other parameters as painting method, plot dimensions when saved, JPEG compression quality, and responsiveness.
