Display image icon in the GridCtrl cell. [message #61910]

Tue, 06 January 2026 07:35

Aarush Verma
Messages: 1
Registered: January 2026

Junior Member

I m trying to display icon using the path in the GridCtrl cell. but its not working and directly storing as Image(100,100).

And I m using GridDisplay only to display but still not working fine.

For references i am attaching documents below.

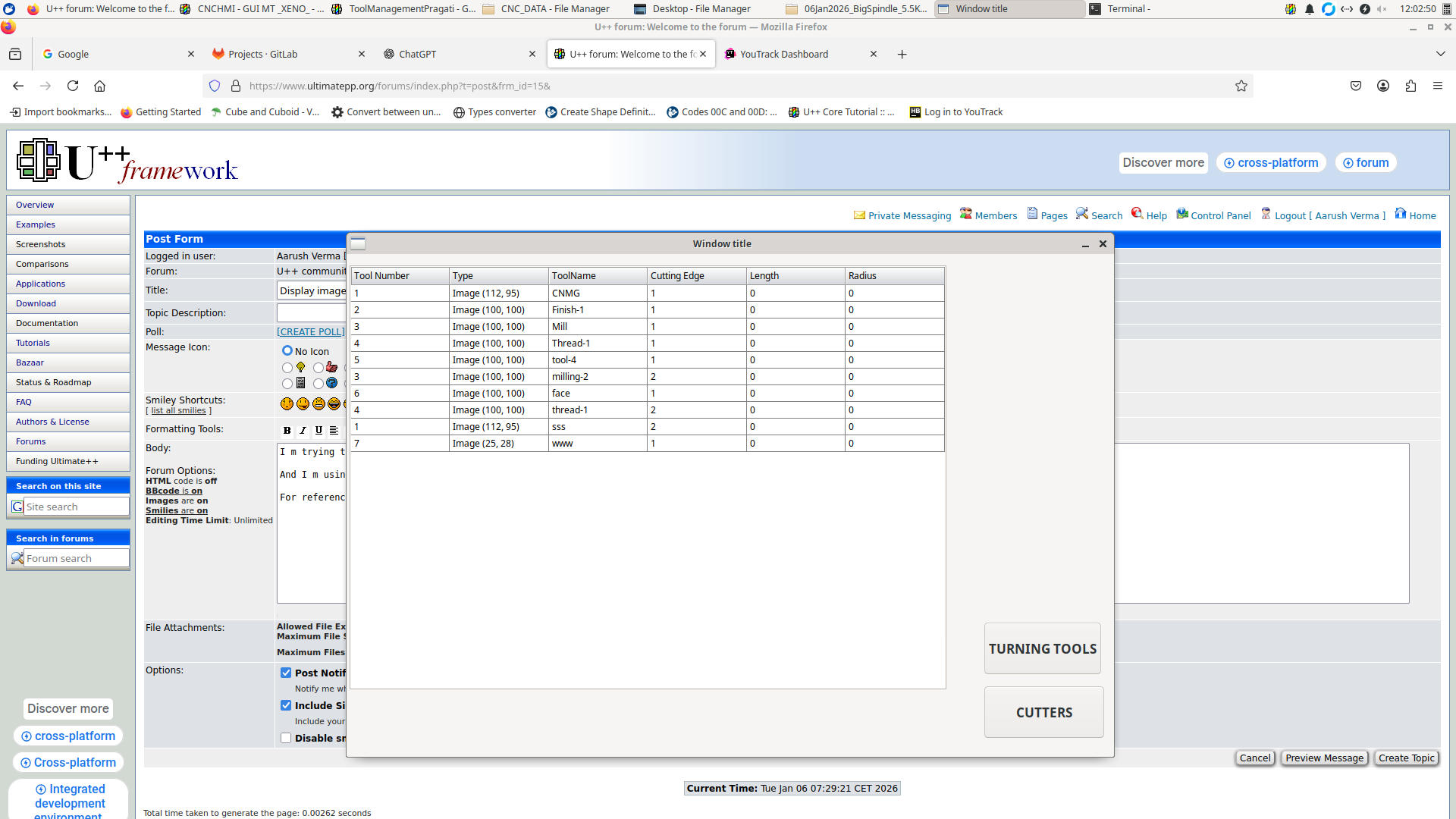

In tool.png, how it is showing in GridCtrl, but w.r.t ArrayCtrl it is working fine.

Attachment: tool.png
(Size: 224.23KB, Downloaded 11 times)

Report message to a moderator

Re: Display image icon in the GridCtrl cell. [message #61911 is a reply to message #61910]

Wed, 07 January 2026 09:24

Oblivion
Messages: 1250
Registered: August 2007

Senior Contributor

Hi Aarush,
Welcome to U++ forums.

If you could provide a basic example code to replicate the issue, it would be more helpful.
However, from the screenshot, it seems that the column display is set to StdDisplay().
You can simply set the Display of the column to ImageDisplay(), or when passing the image use AttrText structure, which you can set image and will display it in even StdDisplay.

Best regards,
Oblivion

Github page: https://github.com/ismail-yilmaz
Bobcat the terminal emulator: https://github.com/ismail-yilmaz/Bobcat

[Updated on: Wed, 07 January 2026 09:25]
