Re: New graph packages [message #41702 is a reply to message #41699] Sat, 11 January 2014 22:55 Go to previous messageGo to next message
Didier is currently offline  Didier
Messages: 680
Registered: November 2008
Location: France
Contributor
In fact this was the first implementation I made to try to prevent abusive FULL refresh (which can take some time) ==> Refresh is made (if needed) when the mouse moves over the graph.

I was already thinking about modifying this since all the recent changes I made made new solutions available.

So I guess the time has come Smile

[Updated on: Sat, 11 January 2014 22:56]

Report message to a moderator

Re: New graph packages [message #41706 is a reply to message #41699] Sun, 12 January 2014 16:15 Go to previous messageGo to next message
Didier is currently offline  Didier
Messages: 680
Registered: November 2008
Location: France
Contributor
Hi all,

I just delivered in SVN.6763 (sandbox) the following modifications for GraphCtrl/GraphDraw:
* Documentation
* Added DynamicMarkerCtrl::ResetMarkers() ==> is called through [popup menu]/[Reset markers]
* Added FULL REFESH on MouseLeave() to prevent letting Graph partially drawn when mouse is outside the GraphCtrl
* Add management of GraphElements with NEGATIVE priority ( several elements with negative prio are allowed on same side )
* GridAxisDraw::Paint() now takes in account StackingPriority to paint the best way possible

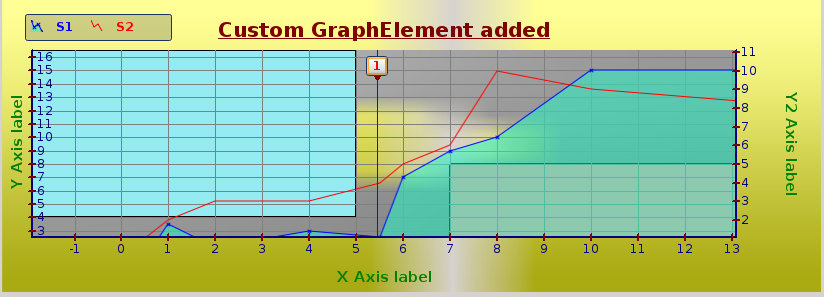

With NEGATIVE Stacking Priority values you can make Graphs like this :
  • Left Y axis is displayed inside Graph
  • Markers are displayed inside graph
  • All the Element's UI controls stays functional (Scroll, zoom, marker move, popup menus, ...)

index.php?t=getfile&id=4402&private=0


ManfredHerr: The issue you detected is now corrected => if mouse leaves the GraphCtrl : GraphCtrl schedules a refresh
  • Attachment: mirek1.png
    (Size: 49.53KB, Downloaded 620 times)

[Updated on: Tue, 14 January 2014 23:36]

Report message to a moderator

Re: New graph packages [message #41732 is a reply to message #41706] Tue, 14 January 2014 23:43 Go to previous messageGo to next message
Didier is currently offline  Didier
Messages: 680
Registered: November 2008
Location: France
Contributor
Hi all,

I just delivered some new modifications:
** Added FULL KBD support
Added KBD shortcut for: for UNDO/REDO & COPY
Added LEFT/RIGHT/UP/DOWN scroll KBD actions
KBD shortcuts for context menu

** Added AUTO-HIDE feature : When using AutoHideElementCtrl<BASE_ELEMENT> template the GraphElement Hides once the mouse is not on it
==> this brings the possibility of adding tools on graphs that do not parasite the visual aspect of the graph

The GraphCtrl_test application has a working example of the AUTO-HIDE feature

[Updated on: Tue, 14 January 2014 23:46]

Report message to a moderator

Re: New graph packages [message #41751 is a reply to message #41732] Thu, 16 January 2014 19:44 Go to previous messageGo to next message
Didier is currently offline  Didier
Messages: 680
Registered: November 2008
Location: France
Contributor
Reply to : http://www.ultimatepp.org/forum/index.php?t=msg&&th= 8159&goto=41747#msg_41747
Quote:

Didier,

tried it again on my home computer, good news: it works now!

I had to extract the packages GraphDraw & GraphCtrl & DropLineDash into an own directory to work.
Sandbox has a "bad" plugin/tif...

BTW, your GraphCtrl_test.upp has a TimingPolicies package I can't find anywhere, thus is not needed any where ?!?.

Cheers Ralph


Hello Ralph,

I am glad to hear that it now compiles and works on MSC10.

The TimingPolicies package is only a helper package that I use when I need to do some precise time mesures. It is required by GraphDraw only if GD_TIMINGS compilation option is set, so by default it is not needed Wink

Re: New graph packages [message #42095 is a reply to message #41751] Tue, 18 February 2014 23:40 Go to previous messageGo to next message
Didier is currently offline  Didier
Messages: 680
Registered: November 2008
Location: France
Contributor
Hi all,

Here is another post about the lattest GraphCtrl/GraphDraw modifications (some which have been present in svn sandbox but for which I didn't post any message:

The main features added/modified are the following:
[*] Code completion now works on GraphCtrl
==> this particular point makes GraphCtrl much easier to use (I also modified a bit the inheritance tree to take advantage of the hierarchy in the completion by layering functionalities )

[*] Grid step take in account text size ==> grid auto resizes according to text size
==> It is not perfect (some artifacts are still there), but it globally works much better than before.





18/02/2014 - SVN.6927
----------------------
* Added DrawFocus(bool) in '.USC' file to enable/disable focus drawing (in case the layout contains only one Ctrl and don't need to draw the Focus )
* Refactored GridAxisDraw and GridStepIterator
- Added management for tick level : majorTickMark and minorTickMark
- Axis text size automatically taken in account to adjust grid step
- Corrected LOG scale management


31/01/2014 - SVN.6840
----------------------
* COMPLETION now works with on FULL class hierarchy of GraphCtrl !!!
* Refactored GraphDraw instance classes in order to improve usability through taking advantage of inheritance tree in completion


25/01/2014 - SVN.6811
----------------------
* Corrected FAST PAINT for PARAMETRIC functions
* Added AddBlankArea()
* Added ExecuteWithUndo()
* Corrected KBD scroll & FitToData authorisations
* Replaced Margins with BlankAreas
* Corrected FOCUS management and Added WantFocus to .USC

Re: New graph packages [message #42139 is a reply to message #42095] Sun, 23 February 2014 22:56 Go to previous messageGo to next message
Didier is currently offline  Didier
Messages: 680
Registered: November 2008
Location: France
Contributor
Hi all,

I just uploaded to svn some corrections concerning automatic management of grid scaling.
Hopefully this corrects all the artifacts ( mostly visible when scrolling )

One bug still remaining : GetImage() get's bad grid ( needs to be recalculated first )

Re: New graph packages [message #42298 is a reply to message #42139] Thu, 06 March 2014 00:30 Go to previous messageGo to next message
Didier is currently offline  Didier
Messages: 680
Registered: November 2008
Location: France
Contributor
Hi I just uploaded some new fixes.

I recommend to update to this version if you are using it : it contains some uninitialized data fixes.

Complete modifications are listed below :

05/03/2014 - SVN.6999
----------------------
* Corrected some initialized vars issues.
* Added missing setGraphSize() methods (regression since hierarchy refactoring)
* Added some predefined Graphs usable in GraphDraw (no need to be Ctrl)
* Added ChangeStatus class to introduce change management in some parts of code
* Renamed + Refactoring GridStepIterator.h ==> GridStepManager.h + GridStepManager.cpp
* Refactoring : code simplification : replaced all TypeGridStepManager::Iterator with GridStepIterator
* Corrected GetImage() regression ==> grid is now correctly resized according to scale


It took me quite hard time to correct the GetImage() regression because some Size() variables were not initialized ...
I didn't noticed before that the default constructor Size() does NOT initialize internal members ..This of coarse making unpredictable behavior ...

The automatic grid adjustment ( taking in account text size ) now works quite well, if anyone stumbles on a corner case I'll be happy to hear about it

[Updated on: Thu, 06 March 2014 00:31]

Report message to a moderator

Re: New graph packages [message #42363 is a reply to message #42298] Sun, 09 March 2014 11:55 Go to previous messageGo to next message
281264 is currently offline  281264
Messages: 270
Registered: June 2010
Location: Spain
Experienced Member
Dear Didier,

It would be interesting that you publish your application in Bazaar so that we can make the most of it. I really appreciate your effort for developping this interesting tool.

Cheers,

Javier

Re: New graph packages [message #42466 is a reply to message #42363] Mon, 17 March 2014 21:06 Go to previous message
Didier is currently offline  Didier
Messages: 680
Registered: November 2008
Location: France
Contributor
Hello Javier,

Sorry for late reply but I was away for a week.

I'm pleased to hear about you're interest for the GraphCtrl package but the package hasn't been accepted in bazaar for the moment although I requested that some time ago.

Anyway it's no big deal to pull the svn repo and the Packages aren't very stable (although getting more more stable )
