Scatter: use NONMARK [message #26707] Thu, 20 May 2010 09:22 Go to next message
tojocky is currently offline  tojocky
Messages: 607
Registered: April 2008
Location: UK
Contributor

Hello All,

I prepared a little patch for use NONMARK draw marks. It is useful when i do not need to use marks!

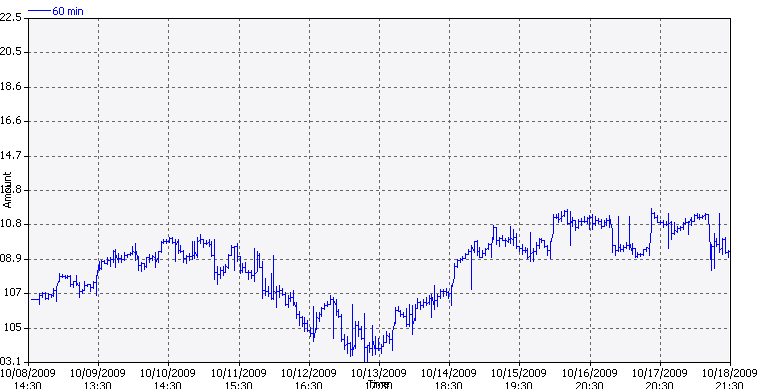

A little screenshot:
index.php?t=getfile&id=2553&private=0

and patch:
Index: bazaar/Scatter/Scatter.cpp
===================================================================
--- bazaar/Scatter/Scatter.cpp	(revision 2410)
+++ bazaar/Scatter/Scatter.cpp	(working copy)
@@ -1102,10 +1102,12 @@
 		case CROSS : ptMark=&Scatter::Cross;		break;
 		case X : ptMark=&Scatter::XFunct;			break;
 		case RHOMB:ptMark=&Scatter::Rhomb;			break;
+		case NONMARK:ptMark=NULL;					break;
 		default : ptMark=&Scatter::Circle;			break;
 	}

-	(*this.*ptMark)(w,scale,cp,size,markColor);
+	if(ptMark!=NULL)
+		(*this.*ptMark)(w,scale,cp,size,markColor);
 }

 Scatter &Scatter::SetMouseHandling(bool valx, bool valy)
Index: bazaar/Scatter/Scatter.h
===================================================================
--- bazaar/Scatter/Scatter.h	(revision 2410)
+++ bazaar/Scatter/Scatter.h	(working copy)
@@ -25,7 +25,8 @@
 		TRIANGLE,
 		CROSS,
 		X,
-		RHOMB
+		RHOMB,
+		NONMARK
 	};
 	enum Formats
 	{


I cannot attach the patch file because I have not permission to attach more than 1 file!

Best regards, Ion.
Re: Scatter: use NONMARK [message #26711 is a reply to message #26707] Thu, 20 May 2010 10:25 Go to previous messageGo to next message
tojocky is currently offline  tojocky
Messages: 607
Registered: April 2008
Location: UK
Contributor

tojocky wrote on Thu, 20 May 2010 10:22

Hello All,

I prepared a little patch for use NONMARK draw marks. It is useful when i do not need to use marks!

A little screenshot:
index.php?t=getfile&id=2553&private=0

and patch:
Index: bazaar/Scatter/Scatter.cpp
===================================================================
--- bazaar/Scatter/Scatter.cpp	(revision 2410)
+++ bazaar/Scatter/Scatter.cpp	(working copy)
@@ -1102,10 +1102,12 @@
 		case CROSS : ptMark=&Scatter::Cross;		break;
 		case X : ptMark=&Scatter::XFunct;			break;
 		case RHOMB:ptMark=&Scatter::Rhomb;			break;
+		case NONMARK:ptMark=NULL;					break;
 		default : ptMark=&Scatter::Circle;			break;
 	}

-	(*this.*ptMark)(w,scale,cp,size,markColor);
+	if(ptMark!=NULL)
+		(*this.*ptMark)(w,scale,cp,size,markColor);
 }

 Scatter &Scatter::SetMouseHandling(bool valx, bool valy)
Index: bazaar/Scatter/Scatter.h
===================================================================
--- bazaar/Scatter/Scatter.h	(revision 2410)
+++ bazaar/Scatter/Scatter.h	(working copy)
@@ -25,7 +25,8 @@
 		TRIANGLE,
 		CROSS,
 		X,
-		RHOMB
+		RHOMB,
+		NONMARK
 	};
 	enum Formats
 	{


I cannot attach the patch file because I have not permission to attach more than 1 file!

Best regards, Ion.



Thanks to Koldo for hint me to use SetShowMark function to hide mark!

My propose is not valid!
Re: Scatter: use NONMARK [message #26712 is a reply to message #26711] Thu, 20 May 2010 10:35 Go to previous message
koldo is currently offline  koldo
Messages: 3355
Registered: August 2008
Senior Veteran
However tojocky advice is helpful

I will upload today a change in AddSeries so that if mark width is <= 1 then vShowMark is set to false. Until now always was set to true so it always tried to do a mark per plotted point.


Best regards
IƱaki
